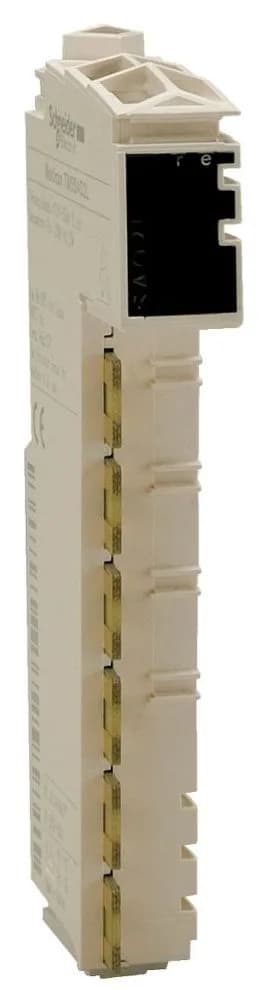

Schneider Electric TM5SAI6TH

Schneider TM5SAI6TH Analog Input Module, 6 TC Inputs

MPNTM5SAI6TH
Active

Schneider Electric Modicon TM5, analog input module, TM5SAI6TH, 6 thermocouple inputs, 12.5 mm width, active.

$307.34Ref. price · indicative, final on quote
Schneider Electric TM5SAI6TH datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM5SAI6TH key specifications
ParameterValue
Type of cableShielded cable
Range of productModicon TM5
Analogue input typeThermocouple - 210...1200 °C thermocouple J Thermocouple - 270...1300 °C thermocouple N Thermocouple - 270...1372 °C thermocouple K Thermocouple - 50...1768 °C thermocouple S
Product or component typeAnalog input module
Supply voltage24 V DC -15...20 %
Typical current consumption2 mA at 5 V DC 38 mA at 24 V DC input/output
Power dissipation in0.92 W
IP degree of protectionIP20
Pollution degree2
Shock resistance15 gn for 11 ms
Relative humidity5...95 % without condensation
Operating altitude0...2000 m

All specifications

TM5SAI6TH additional specifications
ParameterValue
Vibration resistance1 gn (f = 8.4...150 Hz) on DIN rail 3.5 mm (f = 5...8.4 Hz) on DIN rail
Depth75 mm
Width12.5 mm
ColorWhite
Height99 mm
Housing colourWhite
Product weight0.025 kg
StandardsIEC 61131-2 CSA C22.2 No 213 UL 508 CSA C22.2 No 142
SupplyInternal
MarkingCE
Non-linearity+/- 0.001 %FS, analogue input type: thermocouple
Input filtering1...66.7 ms configurable by software
Local signalling1 LED green for power supply 1 LED red for power supply 6 LEDs green for input status
Measurement error+/- 0.1 % of full scale - 210...1200 °C thermocouple J 25 °C +/- 0.11 % of full scale - 270...1300 °C thermocouple N 25 °C +/- 0.11 % of full scale - 270...1372 °C thermocouple K 25 °C +/- 0.17 % of full scale - 50...1768 °C thermocouple S 25 °C
Analogue input number6
Common mode rejection> 70 dB
Measurement resolution0.1 °C
Temperature coefficient0.01 %FS/°C, analogue input type: thermocouple
Analogue input resolution16 bits
Isolation between channels and bus500 Vrms AC
Ambient air temperature for storage-25...70 °C
Ambient air temperature for operation0...55 °C without derating (horizontal installation) 0...60 °C with derating factor (horizontal installation) 0...50 °C (vertical installation)

Product details

TM5SAI6TH — 6-Channel Thermocouple Input Module for Modicon TM5

Six galvanically isolated thermocouple channels in a 12.5 mm housing — the TM5SAI6TH accepts J, N, K, and S types with 16-bit resolution and 0.1 °C measurement granularity. Powered from the TM5 backplane (24 VDC, 38 mA typical), it includes configurable input filtering from 1 to 66.7 ms to dampen electrical noise in industrial environments. Rated for 0–55 °C horizontal mounting with no derating, and CE, UL 508, and CSA C22.2 No 142 approvals cover machine-building compliance.

Integration Notes

The module occupies one slot on the TM5 DIN-rail backplane. Its 12.5 mm width makes it a good fit for high-density I/O banks where panel space is tight. Shielded cable is recommended for thermocouple wiring; the module's common-mode rejection exceeds 70 dB. Isolation between channels and bus is 500 Vrms, so external field-side faults stay off the backplane.

Frequently asked questions

What is the physical width of the TM5SAI6TH?

12.5 mm wide, allowing high-density mounting.

What is the depth of the module?

75 mm, consistent with TM5 family dimensions.

What compliance standards does the TM5SAI6TH carry?

CE marking, IEC 61131-2, CSA C22.2 No 213, UL 508, and CSA C22.2 No 142.
