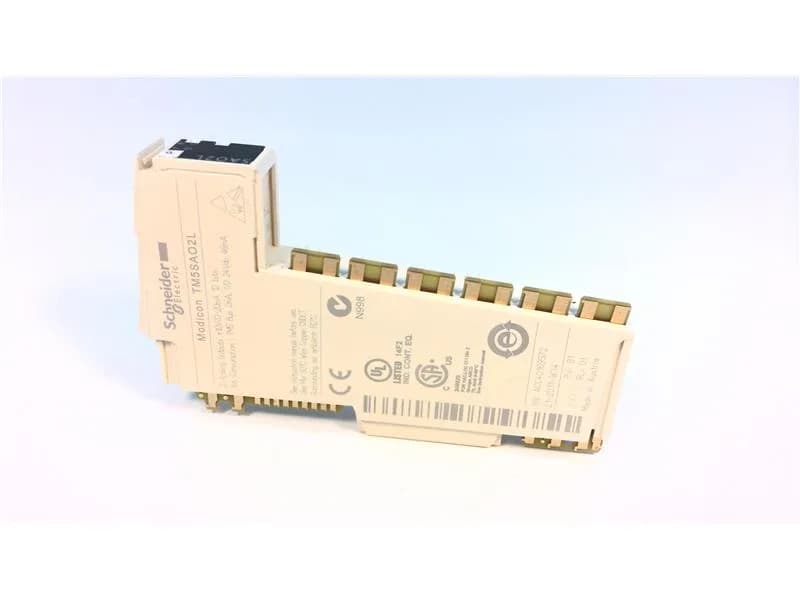

The Schneider TM5SAO2L is a 2-channel analog output slice for the Modicon TM5 I/O family. It delivers either 0-20 mA current or ±10 V voltage per channel. 12.5 mm wide, it snaps onto the TM5 bus rails alongside other digital and specialty modules.
This order code is listed as Obsolete. No direct official replacement is indicated; sourcing runs through surplus or broker channels. Procure-to-order via RFQ. Buyers specifying a new BOM should consider the current TM5 portfolio for a compatible 2-channel analog output substitute—cross-reference with the existing pinout and bus protocol.
Each channel offers 0-20 mA (load ≤500 Ω) or ±10 V output with a response time ≤1 ms. Non-linearity is <0.007% FS; measurement error stays under 0.15% FS at 25°C. Resolution: 4.882 mV on voltage range, 9.766 µA on current. Power draw from the bus is 46 mA at 24 V DC plus 2 mA at 5 V DC; dissipation is 1.11 W. The module carries CE marking and complies with CSA C22.2 No 142, UL 508, CSA C22.2 No 213, and IEC 61131-2. Pollution degree 2, IP20. Ambient operation: 0-55°C horizontal (0-60°C with derating) or 0-50°C vertical. Storage: -25 to 70°C. Shock 15 gn for 11 ms, vibration 1 gn on DIN rail. Status indication: one green LED for bus power, one red for supply fault, two yellow LEDs per output channel. Shielded cable recommended for analog wiring.
