Schneider Electric TM5SDI12D

Schneider TM5SDI12D Discrete Input Module, 12 Ch Sink, 24V D

MPNTM5SDI12D
Active

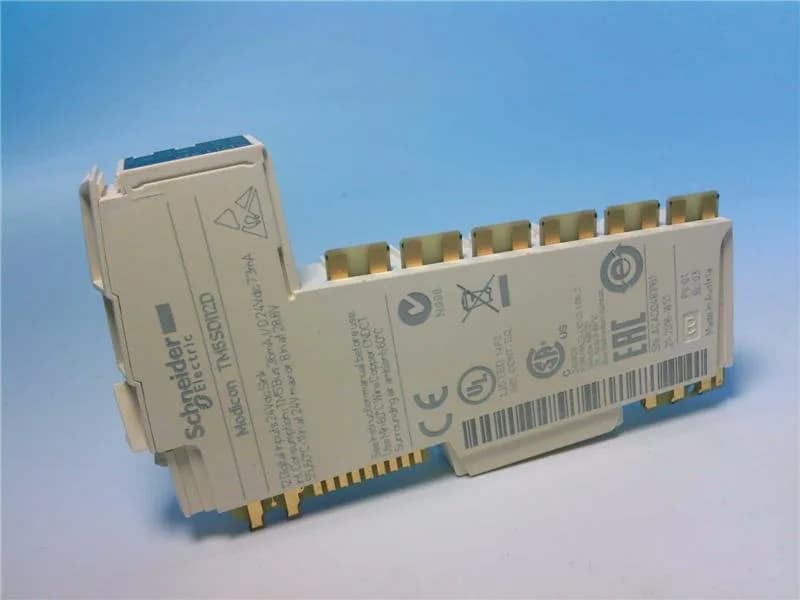

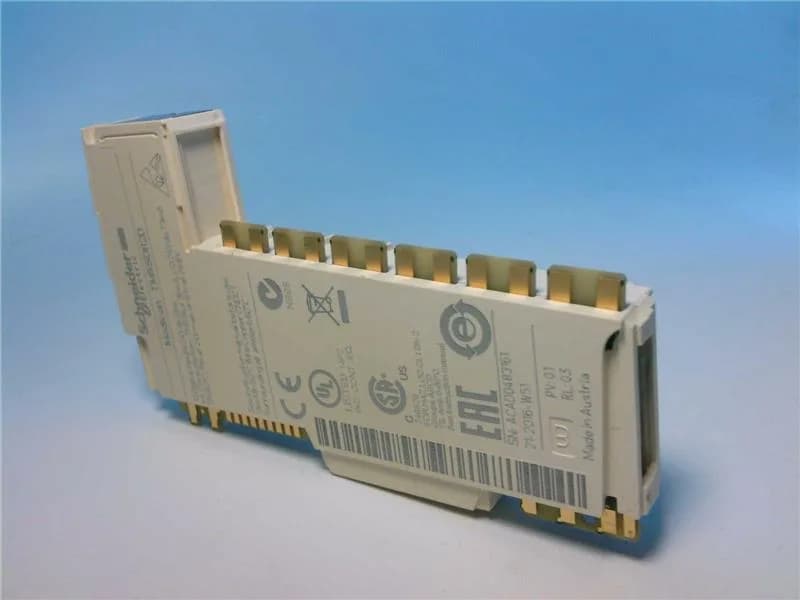

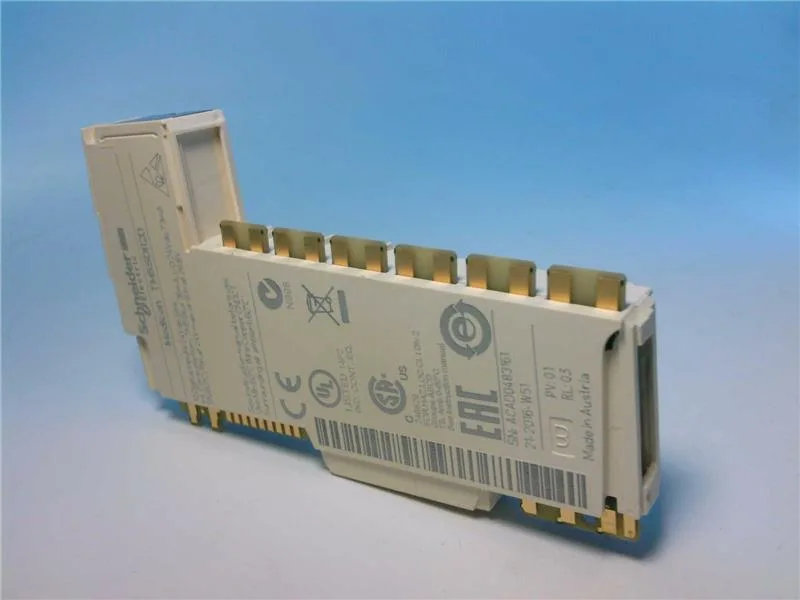

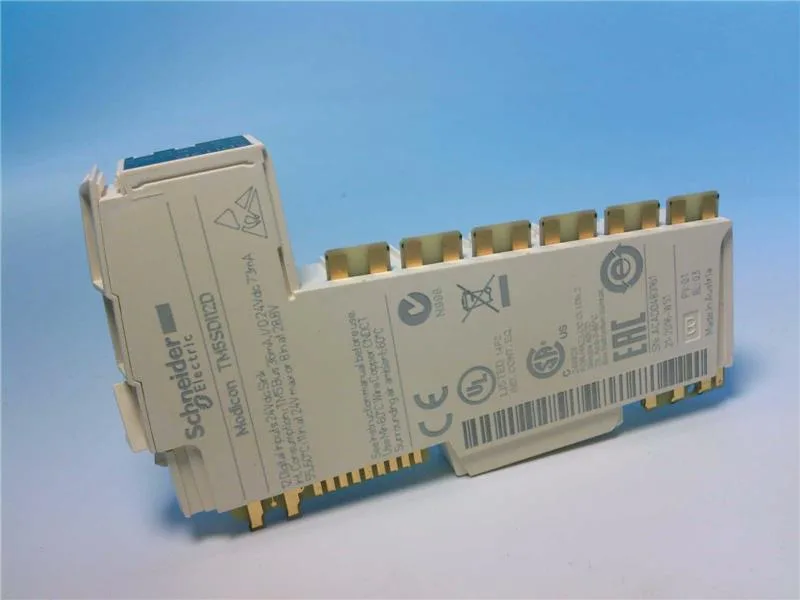

Schneider Electric Modicon TM5 discrete input module, TM5SDI12D, 12 inputs, sink logic, 24 V DC, 3.0 in depth.

$83.82Ref. price · indicative, final on quote
Schneider Electric TM5SDI12D datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM5SDI12D key specifications
ParameterValue
Range of productModicon TM5
Product or component typeDiscrete input module
Discrete input voltage24 V DC 20.4...28.8 V)
Voltage state 0 guaranteed<= 5 V
Voltage state 1 guaranteed>= 15 V
Discrete input current3.75 mA at 24 V DC
Typical current consumption36 mA 5 V DC 73 mA 24 V DC
Power dissipation in1.93 W
IP degree of protectionIP20
Electrical connection1 wire
Pollution degree2
Shock resistance15 gn 11 ms

All specifications

TM5SDI12D additional specifications
ParameterValue
Relative humidity5...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance1 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on DIN rail
Depth3.0 in (75 mm)
Width0.5 in (12.5 mm)
Height3.9 in (99 mm)
StandardsCSA C22.2 No 213 IEC 61131-2 UL 508 CSA C22.2 No 142
MarkingCE
CategoryUS1PC1222532
Input filtering<= 100 ms hardware
Input impedance6.4 kOhm
Local signalling1 LED (green) for power supply 1 LED (red) for power supply 12 LEDs (green) for input status
Discrete input logicSink
Discrete input number12 at 24 V DC
Electromagnetic compatibilityElectrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2 Electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2 Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3 Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3 Electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4 Electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4 Electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-4 1.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5 1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5 Conducted RF disturbances IEC 61000-4-6 Conducted and radiated emissions CISPR 11
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation14...131 °F (-10...55 °C) without derating horizontal installation) 14...140 °F (-10...60 °C) with derating factor horizontal installation) 14...122 °F (-10...50 °C) vertical installation)

Product details

Module fit and input characteristics

The TM5SDI12D is a 12-point discrete input module for the Modicon TM5 platform. It accepts 24 V DC sink signals from field devices like proximity sensors and limit switches, with a guaranteed ON threshold above 15 V and OFF below 5 V. Each channel draws 3.75 mA at 24 V DC, and the module consumes 1.93 W typical. The sink (NPN) logic matches common sourcing PLC interfaces when wired correctly.

Physical and compliance notes

Width of 12.5 mm (0.5 in) lets you fit up to eight modules per standard DIN-rail length; depth is 75 mm and height 99 mm. Rated IP20 with Pollution Degree 2, suitable for clean control cabinets. Listed to UL 508, CSA C22.2 No 142, and IEC 61131-2. Operating temperature from -10 to 55 °C horizontally (or up to 60 °C with derating), storage from -40 to 70 °C.

Environmental and EMC

Built for industrial noise environments: ESD 4 kV contact / 8 kV air, fast transients 2 kV on power lines, surge 1 kV common mode, and radiated immunity 10 V/m up to 2 GHz. Vibration resistance 1 gn at 8.4–150 Hz on DIN rail; shock 15 gn for 11 ms.

Frequently asked questions

What are the key dimensions of the TM5SDI12D?

Width is 0.5 in (12.5 mm), depth is 3.0 in (75 mm), height is 3.9 in (99 mm).

What compliance certifications does the TM5SDI12D carry?

It is CE marked, UL 508 listed, CSA C22.2 No 142 certified, and meets IEC 61131-2. Pollution degree 2, IP20.

How do I source the TM5SDI12D?

This module is available to order through our sourcing channel; submit an RFQ for price and lead time.
