Schneider Electric TM5SDI16D

Schneider TM5SDI16D Digital Input Module, 16I 24VDC Sink, Ac

MPNTM5SDI16D
Active

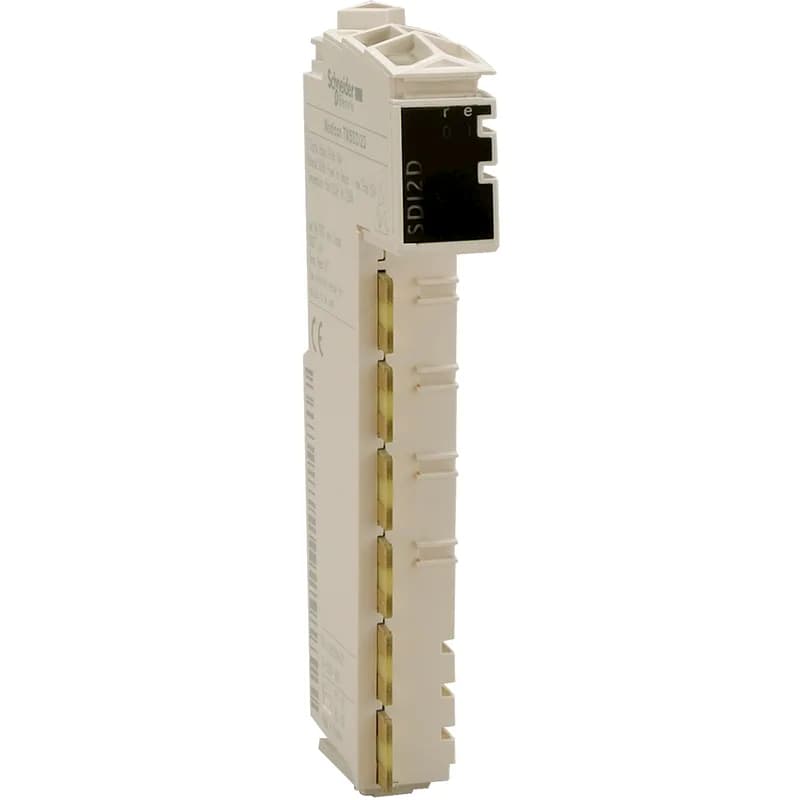

Schneider Modicon TM5, Digital input module, TM5SDI16D, 16 inputs 24V DC sink, 1 wire, 12.5 mm width.

$105.41 – $312.00Ref. price · indicative, final on quote
Schneider Electric TM5SDI16D datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM5SDI16D key specifications
ParameterValue
Range of productModicon TM5
Product or component typeDiscrete input module
Discrete input voltage24 V DC 20.4...28.8 V)
Voltage state 0 guaranteed<= 5 V
Voltage state 1 guaranteed>= 15 V
Discrete input current2.68 mA at 24 V DC
Typical current consumption36 mA 5 V DC 61 mA 24 V DC
Power dissipation in1.65 W
IP degree of protectionIP20
Electrical connection1 wire
Pollution degree2
Shock resistance15 gn 11 ms

All specifications

TM5SDI16D additional specifications
ParameterValue
Relative humidity5...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance1 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on DIN rail
Depth3.0 in (75 mm)
Width0.5 in (12.5 mm)
Height3.9 in (99 mm)
StandardsIEC 61131-2 UL 508 CSA C22.2 No 142 CSA C22.2 No 213
MarkingCE
CategoryUS1PC1222532
Input filtering<= 100 ms hardware
Input impedance8.9 kOhm
Local signalling1 LED (green/red) for power supply 16 LEDs (green) for input status
Discrete input logicSink
Discrete input number16 at 24 V DC
Electromagnetic compatibilityElectrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2 Electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2 Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3 Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3 Electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4 Electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4 Electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-4 1.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5 1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5 Conducted RF disturbances IEC 61000-4-6 Conducted and radiated emissions CISPR 11
Ambient air temperature for storage-40...158 °F (-40...70 °C)
Ambient air temperature for operation14...131 °F (-10...55 °C) without derating horizontal installation) 14...140 °F (-10...60 °C) with derating factor horizontal installation) 14...122 °F (-10...50 °C) vertical installation)

Product details

Line-fit note

TM5SDI16D is the 16-input sink slice for the Modicon TM5 rack. 12.5 mm wide, so it doesn't eat DIN rail you need for other slices. Sink logic, 24 VDC nominal (20.4–28.8 V), 2.68 mA per input. Hardware filter set to ≤100 ms — no CPU overhead for debouncing momentary sensors. If you're populating a TM5 head, this is the standard input card.

Panel placement notes

Pollution degree 2, IP20 — standard control cabinet fit. Horizontal mount gives the full temperature range (-10 to 55°C without derating). Vertical mount knocks the top to 50°C. Vibration at 1 gn on DIN rail, shock 15 gn for 11 ms. The 75 mm depth leaves space for wiring behind the module. Meets UL 508, CSA C22.2 No 142/213, and IEC 61131-2. CISPR 11 emissions compliance keeps it clean for nearby drives.

Frequently asked questions

What compliance certifications does the TM5SDI16D carry?

CE marked, UL 508 listed, CSA C22.2 No 142 and No 213, and it meets IEC 61131-2 and CISPR 11 emissions standards.

What is the physical width of the TM5SDI16D?

12.5 mm (0.5 in) — the narrow width allows high-density I/O placement on the DIN rail.

What is the depth of the TM5SDI16D?

75 mm (3.0 in) — relatively shallow, leaving room for wiring in the cabinet.
