Overview

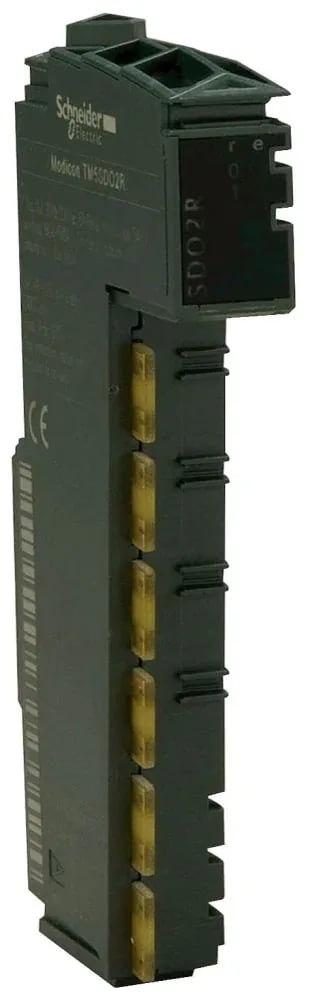

The TM5SDO2R is a Schneider Modicon TM5 digital output module, order code TM5SDO2R, providing 2 relay outputs rated at 5 A switching current on 230 V AC or 30 V DC.
Each relay output switches up to 5 A resistive load at 230 V AC or 30 V DC, with a typical response time of 10 ms. The module provides no insulation between channels but offers 500 Vrms AC insulation between channel and bus, so the relay commons share a potential. There is no overload or short-circuit protection on the outputs — the load circuit must be fused externally. The 1.0 ohm contact resistance is typical for a relay output of this class.
Applications
This module is designed for Modicon M258 logic controllers and LMC058 motion controllers, as well as PacDrive LMC motion controllers. It switches discrete loads such as contactors, solenoids, valves, and indicator lamps in machine control and small process skids where two relay outputs are sufficient.
The TM5SDO2R sits in the Modicon TM5 I/O family as a compact 2-point relay output module. At 12.7 mm wide it occupies minimal DIN-rail space, making it suitable for panels where output count is low but relay isolation is required. It is specified for OEM machines and small control cabinets that use Modicon M258 or LMC058 controllers.
The TM5SDO2R is an active product in Schneider's Modicon TM5 range. It carries an 18-month warranty from the manufacturer. No end-of-life notice or last-time-buy date has been announced as of the latest available data. Sourcing is through standard distributor channels; lead time is typically confirmed on request via RFQ.
