The Schneider Electric Modicon TM5SDO4TA is a discrete output module with 4 source outputs at 24 V DC, rated 2 A per channel (12 A peak) and 4 A per output common. Response is fast: ≤300 µs from on to off, with a switching frequency up to 500 Hz resistive. The voltage drop is under 2 V at 500 mA sensor supply, and leakage is just 5 µA when switched off — clean for direct solenoid or indicator loads in a Modicon TM5 I/O island.

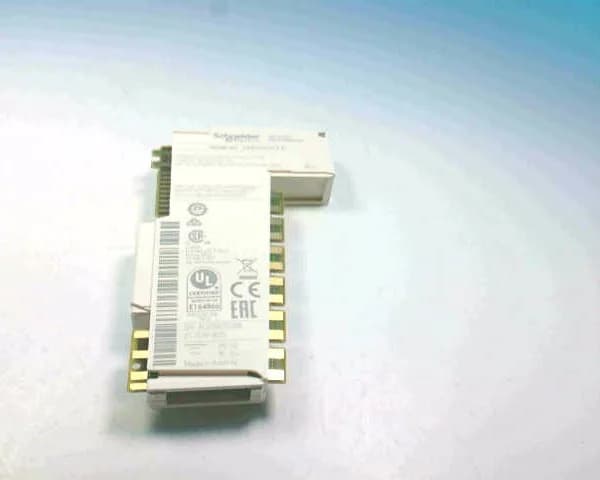

TM5SDO4TA Modicon TM5 Output Module, 4 Ch 2A Source
MPNTM5SDO4TA
Active
Schneider Electric Modicon TM5, discrete output module, TM5SDO4TA, 4 source outputs at 24 V DC 2 A, 12 A peak, 4 A per common.
$72.39Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon TM5 |
| Product or component type | Discrete output module |
| Maximum voltage drop | <2 V at 500 mA sensor supply |
| Discrete output voltage | 24 V DC 20.4...28.8 V)transistor |
| Current per channel | 2 A |
| Peak output current | 12 A |
| Maximum leakage current | 5 µA 24 V DC when switched off |
| Typical current consumption | 32 mA 5 V DC 21 mA 24 V DC |
| Maximum current per output common | 4 A |
| Power dissipation in | 2.1 W |
| Switching frequency | <= 500 Hz resistive |
| IP degree of protection | IP20 |
All specifications
| Parameter | Value |
|---|---|
| Electrical connection | 3 wires |
| Response time | <= 300 µs from state 1 to state 0 output |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
| Relative humidity | 5...95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 1 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on DIN rail |
| Depth | 3.0 in (75 mm) |
| Width | 0.5 in (12.5 mm) |
| Height | 3.9 in (99 mm) |
| Standards | UL 508 IEC 61131-2 CSA C22.2 No 213 CSA C22.2 No 142 |
| Marking | CE |
| Category | US1PC1222532 |
| Local signalling | 1 LED (green) for power supply 1 LED (red) for power supply 4 LEDs (yellow) for output status |
| Discrete output logic | Source |
| Discrete output number | 4 transistor at 24 V DC |
| Electromagnetic compatibility | Electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2 Electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2 Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3 Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3 Electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4 Electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4 Electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-4 1.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5 1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5 Conducted RF disturbances IEC 61000-4-6 Conducted and radiated emissions CISPR 11 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) without derating horizontal installation) 14...140 °F (-10...60 °C) with derating factor horizontal installation) 14...122 °F (-10...50 °C) vertical installation) |
Product details
Frequently asked questions
What are the physical dimensions of the TM5SDO4TA?
Depth is 3.0 in (75 mm), width is 0.5 in (12.5 mm), and height is 3.9 in (99 mm).
What compliance documentation does the TM5SDO4TA carry?
It carries UL 508, IEC 61131-2, CSA C22.2 No 213 and No 142, plus CE marking.
