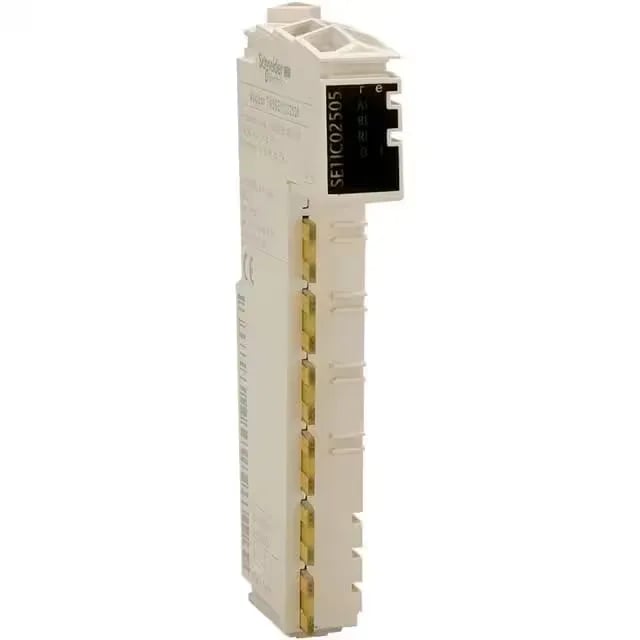

TM5SE1IC01024 - Schneider Electric
MPNTM5SE1IC01024
Active
COUNTER MODULE, MODICON TM5, 1 H
$320.57 – $543.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Encoder type | 1 incremental encoder |
| Range of product | Modicon TM5 |
| Product or component type | Counter module |
| Surge withstand | 0.5 kV differential mode IEC 61000-4-5 1 kV common mode IEC 61000-4-5 |
| DC supply voltage | 24 V |
| Discrete input voltage | 24 V DC |
| Current consumption | 2 mA 5 V DC bus 58 mA 24 V DC input/output |
| Discrete input current | 3.3 mA 24 V |
| Maximum power dissipation in | 1.41 W |
| Counting frequency | 100 kHz |
| IP degree of protection | IP20IEC 61131-2 |
| Pollution degree | 2 IEC 60664 |
All specifications
| Parameter | Value |
|---|---|
| Shock resistance | 15 gn 11 ms |
| Storage altitude | 0...9842.5 ft (0...3000 m) |
| Relative humidity | 5...95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 1 gn 8.4...150 Hz DIN rail 3.5 mm 5...8.4 Hz DIN rail |
| Depth | 3.0 in (75 mm) |
| Width | 0.5 in (12.5 mm) |
| Height | 3.9 in (99 mm) |
| Standards | IEC 61131-2 CSA C22.2 No 213 CSA C22.2 No 142 UL 508 |
| Marking | CE |
| Category | US1PC1222532 |
| Isolation | 500 Vrms AC insulation between channel and bus |
| Input resistance | 7.19 kOhm |
| Function of module | 2 x 24 V DC auxiliary inputs 24 V DC encoder power supply |
| Maximum cycle time | 2 ms |
| Input compatibility | 1 incremental encoder (24 V) |
| Discrete input logic | Sink |
| Discrete input number | 1 |
| Counter inputs resolution | 16 bits/32 bits |
| Product specific application | Downcounting Frequency generator Upcounting Period measurement Frequency meter Axis following with encoder |
| Electromagnetic compatibility | EN/IEC 61000-4-6 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O) 1 kV IEC 61000-4-4 shielded cable) 2 kV IEC 61000-4-4 power lines) |
| Disturbance radiated (conducted) | CISPR 11 |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3 9.1 V/m (10 V/m) 80...2000 MHz IEC 61000-4-3 |
| Ambient air temperature for operation | 32...131 °F (0...55 °C) without derating horizontal installation) 32...140 °F (0...60 °C) with derating factor horizontal installation) 32...122 °F (0...50 °C) vertical installation) |
| Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2 8 kV in air IEC 61000-4-2 |
MPN
TM5SE1IC01024
