The TM5SEAISG: Mounts on DIN rail, shares the 24 V DC bus and 5 V logic supply with the TM5 backplane (2 mA at 5 V, 52 mA at 24 V input/output). Operates 0 to 55 °C horizontal, 0 to 50 °C vertical. IP20. Mechanical and bus-compatible with other TM5 12.5 mm modules such as TM5SAO2L; panel wiring is undisturbed when swapping between analog input and output slices at the same slot.

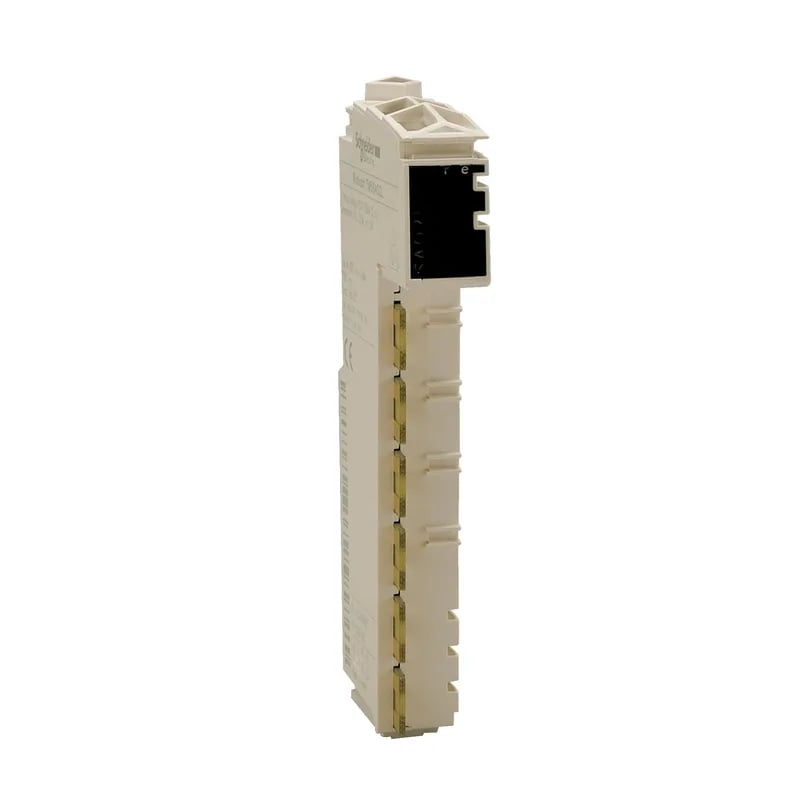

TM5SEAISG - Modicon TM5 1 AI Strain Gauge, 24-bit
MPNTM5SEAISG
Active
Schneider Electric Modicon TM5 analog input module, TM5SEAISG, 1 AI full-bridge strain gauge, 24-bit resolution, 12.5 mm wide.
$201.93Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type of cable | Shielded cable |
| Range of product | Modicon TM5 |
| Analogue input type | Full-bridge strain gauge 85...5000 Ohm |
| Product or component type | Analog input module |
| Supply voltage | 24 V DC |
| Typical current consumption | 2 mA at 5 V DC 52 mA at 24 V DC input/output 65 mA at 5 V DC |
| Power dissipation in | 1.25 W |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Shock resistance | 15 gn for 11 ms |
| Relative humidity | 5...95 % without condensation |
| Operating altitude | 0...2000 m |
All specifications
| Parameter | Value |
|---|---|
| Vibration resistance | 1 gn (f = 8.4...150 Hz) on DIN rail 3.5 mm (f = 5...8.4 Hz) on DIN rail |
| Depth | 75 mm |
| Width | 12.5 mm |
| Color | White |
| Height | 99 mm |
| Housing colour | White |
| Product weight | 0.025 kg |
| Standards | IEC 61131-2 CSA C22.2 No 142 CSA C22.2 No 213 UL 508 |
| Supply | Internal |
| Marking | CE |
| Local signalling | 1 LED green for power supply 1 LED red for power supply 1 LED green for input status |
| Temperature drift | 10 ppm/°C |
| Analogue input number | 1 |
| Analogue input resolution | 24 bits |
| Isolation between channels and bus | 500 Vrms AC |
| Ambient air temperature for storage | -25...70 °C |
| Ambient air temperature for operation | 0...55 °C without derating (horizontal installation) 0...60 °C with derating factor (horizontal installation) 0...50 °C (vertical installation) |
Product details
Frequently asked questions
Will the TM5SEAISG drop into a panel wired for the TM5SAO2L?
Yes, the mechanical footprint (12.5 x 75 x 99 mm) and backplane bus are identical, so it occupies the same slot without rewiring.
What compliance documentation is available?
CE marked, certified to IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213, and UL 508.
