Schneider Electric TM5SMM6D2L

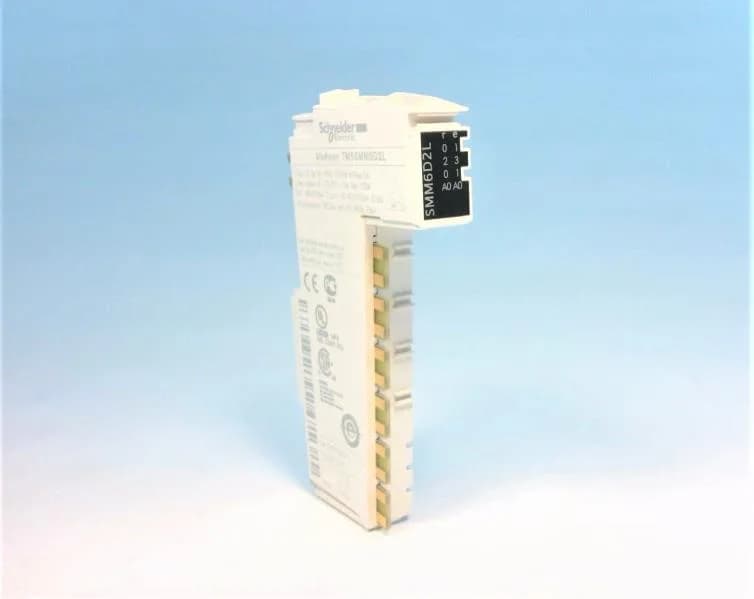

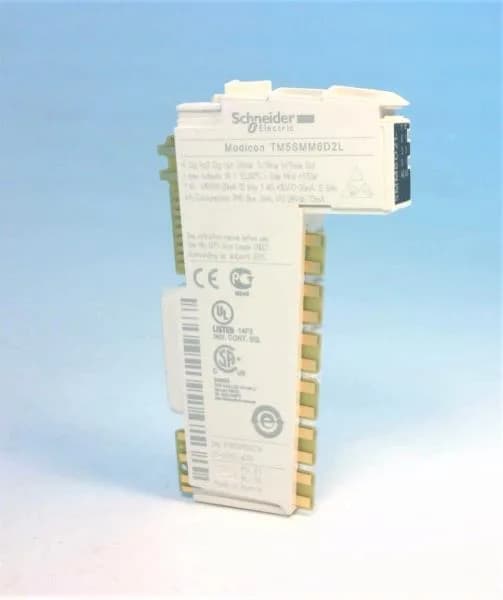

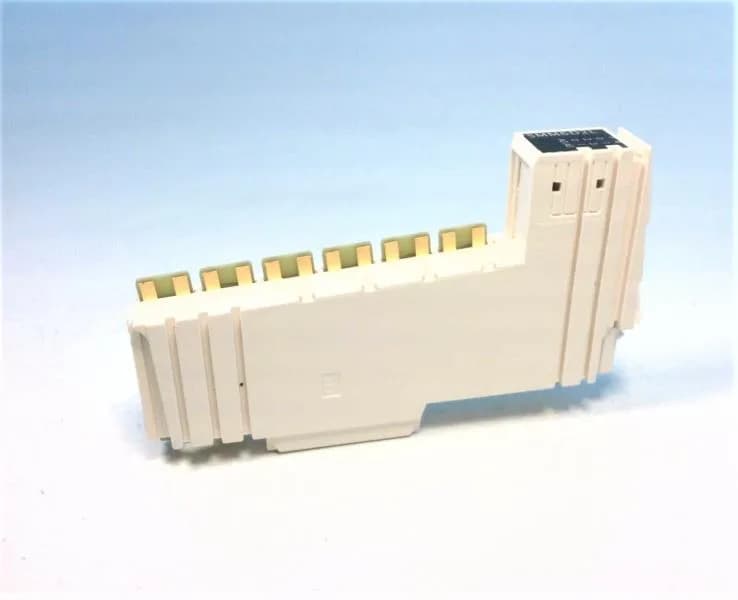

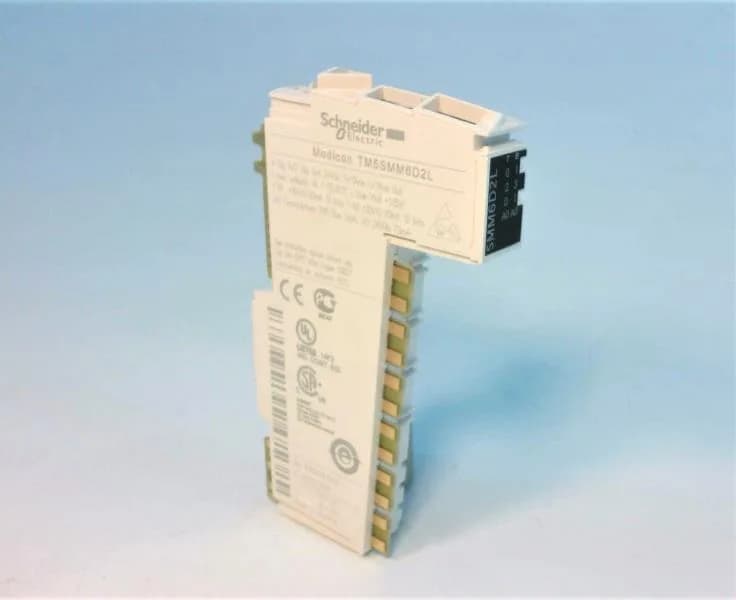

Schneider TM5SMM6D2L Modicon TM5 mixed I/O module, 4 DI, 2 DO, 1 AI/AO

MPNTM5SMM6D2L
Active

Schneider TM5SMM6D2L Plc Modules — now discontinued, supplied from remaining surplus and broker stock.

$129.54 – $367.00Ref. price · indicative, final on quote
Schneider Electric TM5SMM6D2L datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM5SMM6D2L key specifications
ParameterValue
Type of cableShielded cable
Protection typeAgainst reverse polarity digital output Against short-circuits digital output Thermal overload protection digital output Against short-circuits analog output
Range of productModicon TM5
Analogue input typeVoltage +/- 10 V Current 0...20 mA/4...20 mA
Analogue output typeVoltage +/- 10 V Current 0...20 mA
Product or component typeMixed I/O module
Output voltage24 V DC
Input voltage limits20.4...28.8 V
Discrete input voltage24 V DC 20.4...28.8 V)
Supply voltage24 V DC -15...20 %
Voltage state 0 guaranteed= 15 V
Current consumption2 mA 5 V DC bus 73 mA 24 V DC inputs/outputs

All specifications

TM5SMM6D2L additional specifications
ParameterValue
Peak output current14 A
Discrete input current3.3 mA
Discrete output current<= 1 A
Maximum leakage current5 µA when switched off) digital output
Maximum power dissipation in1.75 W
Switching frequency100 Hz, resistive digital output
IP degree of protectionIP20
Response time1 ms analog output
Pollution degree2
Shock resistance15 gn 11 ms
Relative humidity5...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance1 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on DIN rail
ColorWhite
Depth3.0 in (75 mm)
Width0.5 in (12.5 mm)
Height3.9 in (99 mm)
StandardsIEC 61131-2 CSA C22.2 No 142 UL 508 CSA C22.2 No 213
SupplyInternal
MarkingCE
CategoryUS1PC1222532
IsolationNo insulation between channels 500 Vrms AC insulation between channel and bus
Wiring mode1 wire digital input/output
Non-linearity+/- 0.02 %FS 0...20 mA/4...20 mA) +/- 0.02 %FS +/- 10 V) +/- 0.1 %FS0...20 mA) +/- 0.1 %FS+/- 10 V)
Conversion time300 µs analog output
Input filtering1 ms by default <= 25 ms configurable by software
Input impedance7.18 kOhm digital >= 1 MOhm analog, +/- 10 V
Local signalling1 LED (green) for power supply (ON) 1 LED (red) for power supply (OFF) 4 LEDs (green) for digital input status 2 LEDs (orange) for digital output status 1 LED (orange) 1 LED (green)
Measurement error< 0.08 % of full scale +/- 10 V) 25 °C < 0.08 % of full scale 0...20 mA/4...20 mA) 25 °C < 0.15 % of full scale+/- 10 V) 25 °C < 0.15 % of full scale0...20 mA) 25 °C
Sampling duration300 µs analog input
Discrete input logicSink
Load impedance ohmic<= 300 Ohm 0...20 mA/4...20 mA)
Analogue input number1
Common mode rejection70 dB DC analog input 70 dB 50 Hz analog input
Discrete input number4
Discrete output logicSource
Analogue output number1
Discrete output number2
Measurement resolution2.441 mV, +/- 10 V, +/- 10 V 4.883 µA, 0...20 mA/4...20 mA, 0...20 mA
Temperature coefficient+/- 0.009 %FS/°C 0...20 mA/4...20 mA) +/-0.006 %FS/°C +/- 10 V) +/- 0.02 %FS/°C0...20 mA) +/- 0.02 %FS/°C+/- 10 V)
Minimum output impedance1 kOhm +/- 10 V 32...131 °F (0...55 °C) 10 kOhm +/- 10 V 131...140 °F (55...60 °C)
Analogue input resolution12 bits + sign voltage 12 bits current
Analogue output resolution12 bits + sign, +/- 10 V 12 bits, 0...20 mA
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation32...131 °F (0...55 °C) without derating horizontal installation) 131...140 °F (55...60 °C) with derating factor horizontal installation) 32...122 °F (0...50 °C) vertical installation)

Product details

Overview

The TM5SMM6D2L is a Schneider Modicon TM5 mixed I/O slice that packs 4 digital inputs, 2 solid-state outputs, and a single analog I/O channel into a 12.7 mm wide housing — one module for a small control point that needs both discrete and analog signals. The analog channel handles voltage ±10 V or current 0…20 mA on both input and output, with a non-linearity of ±0.02 %FS for the 0…20 mA input path. The module is rated for 15 gn 11 ms shock and carries CE, CSA, cULus, and GOST marks.

Compared to the TM5SAI4H, which provides 4 dedicated analog inputs with no digital I/O, the TM5SMM6D2L trades analog channel count for a mixed signal set — 4 digital inputs and 2 solid-state outputs alongside a single analog I/O channel. If your panel needs pure analog sensing, the TM5SAI4H is the right slice; if you need a compact mix of discrete and analog in one slot, the TM5SMM6D2L fits.

MPN
TM5SMM6D2L
