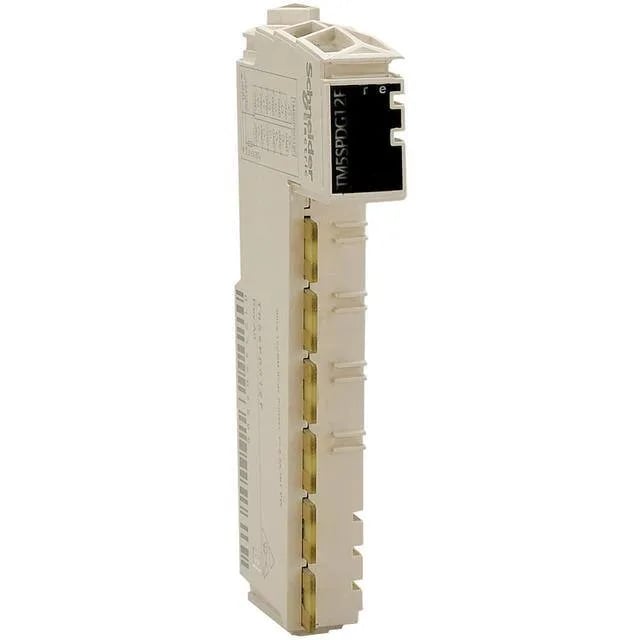

TM5SPDG12F - Schneider Electric
MPNTM5SPDG12F
Active
COMMON DISTRIBUTION MODULE, MODI
$108.62 – $205.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon TM5 |
| Product or component type | Common distribution module |
| Supply voltage | 24 V DC |
| Short-circuit protection | 6.3 A internal fuse |
| IP degree of protection | IP20 |
| Electrical connection | Screw/spring terminal block |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
| Relative humidity | 5...95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 1 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on DIN rail |
| Depth | 3.0 in (75 mm) |
All specifications
| Parameter | Value |
|---|---|
| Width | 0.5 in (12.5 mm) |
| Height | 3.9 in (99 mm) |
| Standards | IEC 61131-2 CSA C22.2 No 213 UL 508 CSA C22.2 No 142 |
| Marking | CE |
| Category | US1PC1222532 |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) vertical installation) 32...131 °F (0...55 °C) without derating horizontal installation) 32...140 °F (0...60 °C) with derating factor horizontal installation) |
MPN
TM5SPDG12F
