Schneider Electric TM5SPDG6D6F

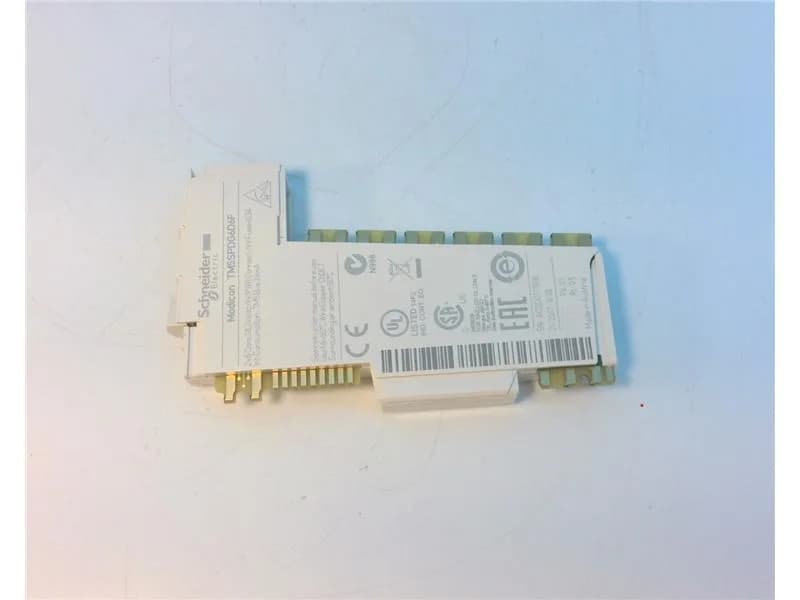

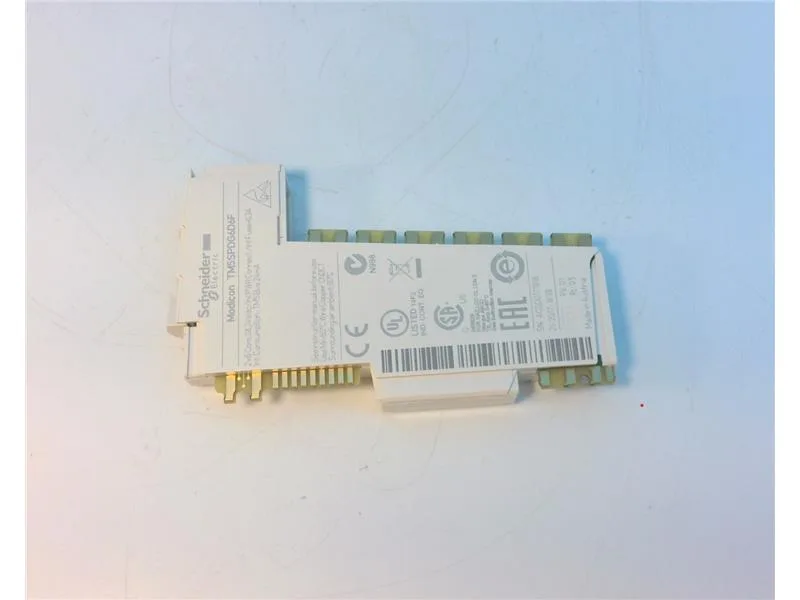

TM5SPDG6D6F Power Distribution Module, 24 V DC, 6.3 A

MPNTM5SPDG6D6F
Active

Schneider Electric Modicon TM5 series, power distribution module, TM5SPDG6D6F, 24 V DC rated supply, 6.3 A internal fuse, IP20, DIN-rail mount.

$52.07Ref. price · indicative, final on quote
Schneider Electric TM5SPDG6D6F datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

TM5SPDG6D6F key specifications
ParameterValue
Range of productModicon TM5
Product or component typePower distribution module
Supply voltage24 V DC
Short-circuit protection6.3 A internal fuse
IP degree of protectionIP20
Electrical connectionScrew/spring terminal block
Pollution degree2
Shock resistance15 gn 11 ms
Relative humidity5...95 % without condensation
Operating altitude0...6561.68 ft (0...2000 m)
Vibration resistance1 gn 8.4...150 Hz) on DIN rail 3.5 mm 5...8.4 Hz) on DIN rail
Depth3.0 in (75 mm)

All specifications

TM5SPDG6D6F additional specifications
ParameterValue
Width0.5 in (12.5 mm)
Height3.9 in (99 mm)
StandardsUL 508 IEC 61131-2 CSA C22.2 No 213 CSA C22.2 No 142
MarkingCE
CategoryUS1PC1222532
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation32...122 °F (0...50 °C) vertical installation) 32...131 °F (0...55 °C) without derating horizontal installation) 32...140 °F (0...60 °C) with derating factor horizontal installation)

Product details

The TM5SPDG6D6F: Rated for indoor use, IP20, pollution degree 2. Operating temperature 0–55 °C horizontal without derating, 0–50 °C vertical, and up to 60 °C with derating factor. Storage from -25 to 70 °C. Vibration resistance 1 gn (8.4–150 Hz) on DIN rail, shock 15 gn / 11 ms. Altitude up to 2000 m. Width is a single-slot 12.5 mm (0.5 in), depth 75 mm (3.0 in), height 99 mm (3.9 in). DIN-rail clip included.

Carries UL 508, IEC 61131-2, CSA C22.2 No. 213, and CSA C22.2 No. 142 certifications, plus CE marking. The internal fuse is rated 6.3 A; no external fusing required for module protection.

Frequently asked questions

What is the physical width of this module?

Width is 0.5 in (12.5 mm), a single TM5 slot width.

What is the depth of this module?

Depth is 3.0 in (75 mm).

What compliance certifications does it carry?

It is certified to UL 508, IEC 61131-2, CSA C22.2 No. 213, and CSA C22.2 No. 142, and carries CE marking.
