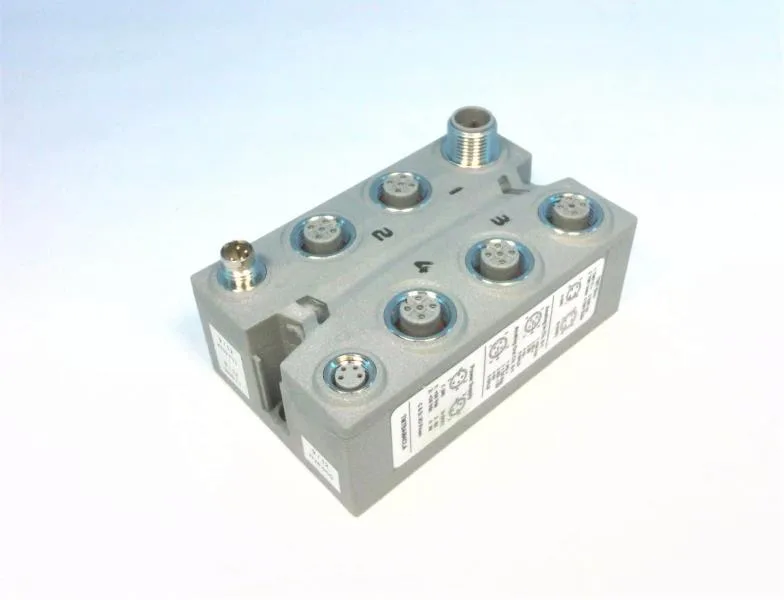

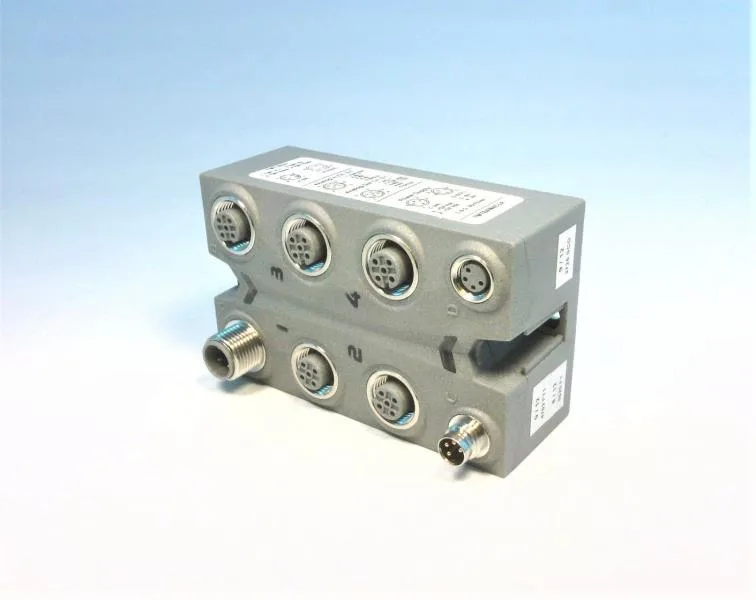

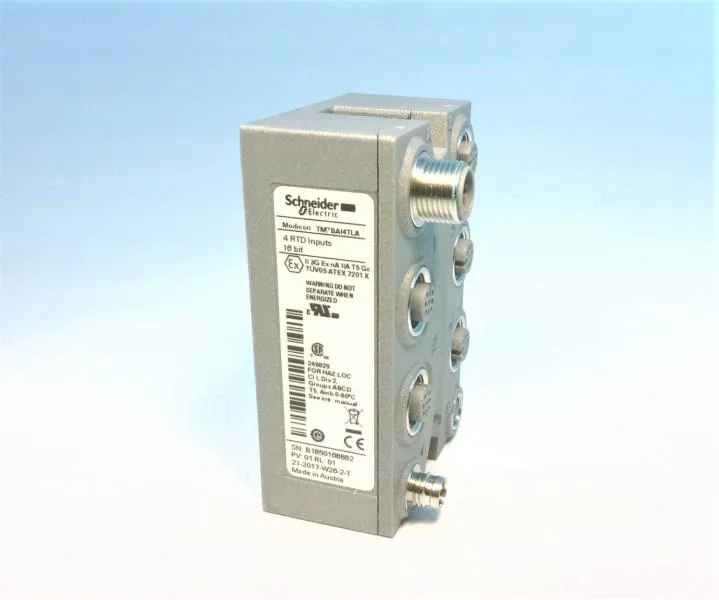

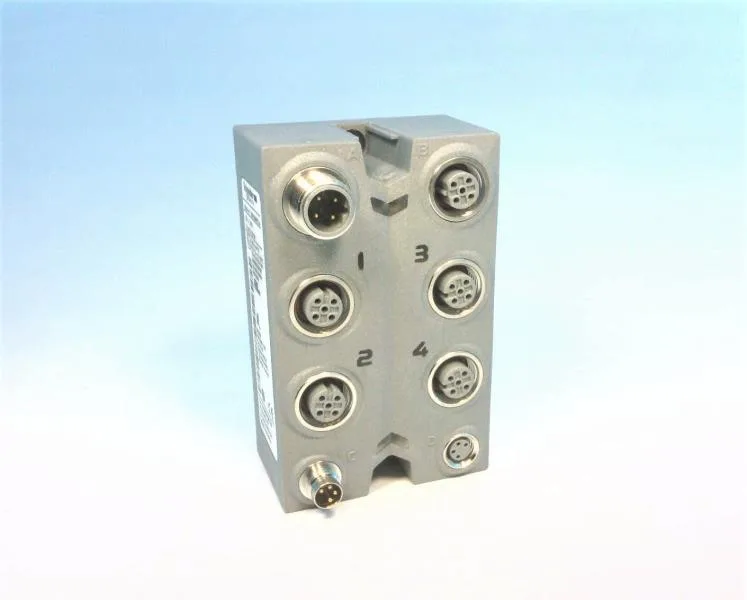

Schneider Electric TM7BAI4TLA
MPNTM7BAI4TLA
Active
Analog I/O expansion block
$241.17 – $572.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Protocol | TM7 bus |
| Range of product | Modicon TM7 |
| Analogue input type | KTY 84 silicon temperature probe KTY 10 silicon temperature probe Pt 1000 temperature probe Pt 100 temperature probe |
| Product or component type | Analog I/O expansion block |
| Sensor power supply | 24 V |
| Power dissipation in | 2.3 W |
| Enclosure material | Plastic |
| IP degree of protection | IP67 |
| Electrical connection | 1 male connector M12 - B coding - 4 ways bus IN 1 female connector M12 - B coding - 4 ways bus OUT 4 female connectors M12 - A coding - 5 ways sensor 1 male connector M8 - 4 ways power IN 1 female connector M8 - 4 ways power OUT |
| Pollution degree | 2 |
| Shock resistance | 30 gn 11 msIEC 60721-3-5 Class 5M3 |
| Relative humidity | 5...95 % without condensation or dripping water |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | 0...6561.68 ft (0...2000 m) |
| Vibration resistance | 7.5 mm constant amplitude 2...8 Hz) IEC 60721-3-5 Class 5M3 2 gn constant acceleration 8...200 Hz) IEC 60721-3-5 Class 5M3 4 gn constant acceleration 200...500 Hz) IEC 60721-3-5 Class 5M3 |
| Depth | 1.7 in (42 mm) |
| Width | 2.09 in (53 mm) |
| Height | 3.3 in (85 mm) |
| Standards | IEC 61131-2 |
| Marking | CE |
| Category | US1PC1222532 |
| Fixing mode | By 2 screws |
| Input impedance | 0...3276 Ohm |
| Local signalling | 2 LEDs bus diagnostic 2 LEDs sensor/actuator power supply status |
| Input wiring mode | 2, 3 or 4 wires |
| Sampling duration | 75 ms per input channels 195 ms per input channels |
| Operating position | Any position |
| Analogue input number | 4 |
| Analogue input resolution | 16 bits |
| Electromagnetic compatibility | EN/IEC 61000-4-6 |
| Ambient air temperature for storage | -13...185 °F (-25...85 °C) |
| Ambient air temperature for operation | 14...140 °F (-10...60 °C) |
MPN
TM7BAI4TLA
