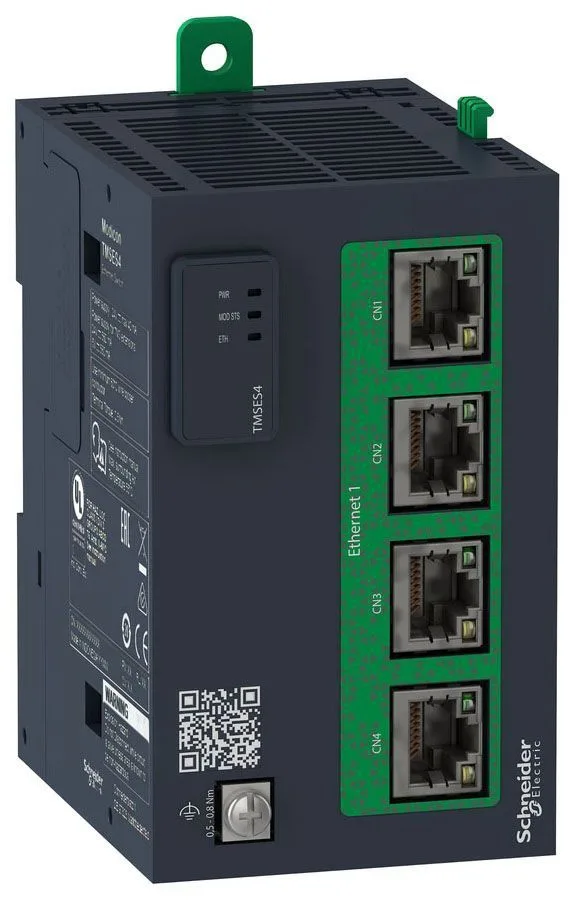

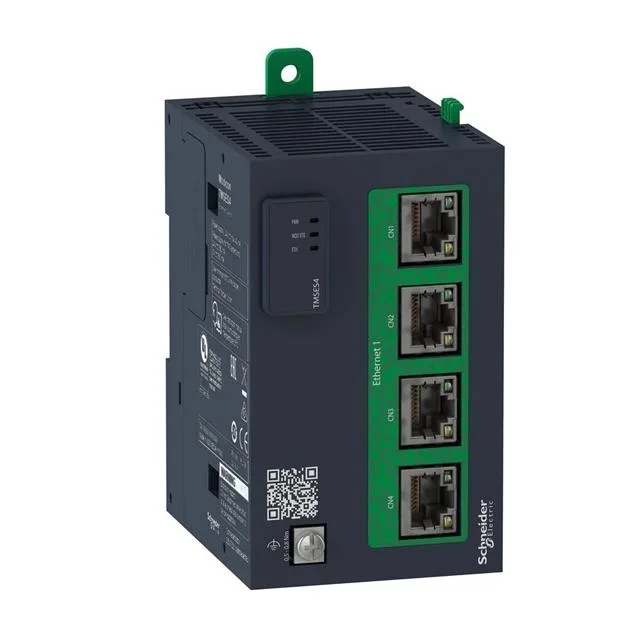

Schneider Electric TMSES4
MPNTMSES4
Active
SMART COMMUNICATION MODULE, MODI
$257.81Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon M262 |
| Product or component type | Smart communication module |
| Current consumption | 200 mA 24 V |
| IP degree of protection | IP20 |
| Communication service | Ethernet/IP adapter DHCP client IEC VAR ACCESS Modbus TCP server SNMP client/server FTP client/server SQL client Send and receive email from the controller based on TCP/UDP library Web server OPC UA server DNS client MQTT SNTP TLS |
| Communication port protocol | Ethernet |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms |
| Storage altitude | 0...9842.5 ft (0...3000 m) |
| Relative humidity | 10...95 %, without condensation in operation) 10...95 %, without condensation in storage) |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
All specifications
| Parameter | Value |
|---|---|
| Vibration resistance | 3.5 mm 2...8.4 Hz symmetrical rail 1 gn 8.4...200 Hz symmetrical rail 3.5 mm 2...8.4 Hz panel mounting 1 gn 8.4...200 Hz panel mounting |
| Depth | 3.5 in (88.3 mm) |
| Width | 2.4 in (60 mm) |
| Height | 3.9 in (100 mm) |
| Standards | UL 61010-1 UL 61010-2-201 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 CSA C22.2 No 213 ANSI/ISA 12-12-01 IEC 61131-2 - |
| Category | US10MSX22533 |
| Services | Self speed adaptation (10-100-1000 Mbits) Half or full duplex Autocrossing (MDIO) |
| Web services | Web server |
| Port ethernet | 10/100/1000 BASE-TX - 4 RJ45 |
| Local signalling | 1 LED (green) for PWR 1 LED for MOD STS 1 LED for ETH |
| Electromagnetic emission | Conducted emissions 120...69 dBµV/m QP power lines)10...150 kHz IEC 55011 Conducted emissions 63 dBμV/m QP power lines)1.5...30 MHz IEC 55011 Radiated emissions 40 dBµV/m A30...230 kHz IEC 55011 Conducted emissions 79...63 dBμV/m QP power lines)150...1500 kHz IEC 55011 Radiated emissions 47 dBµV/m A230...1000 MHz IEC 55011 |
| Number of module per PLC | 1 maximum per logic controller 1 maximum per motion controller |
| Resistance to fast transients | 2 kV IEC 61000-4-4 power lines) 1 kV IEC 61000-4-4 Ethernet line) 1 kV IEC 61000-4-4 serial link) 1 kV IEC 61000-4-4 input) 1 kV IEC 61000-4-4 transistor output) |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-4 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) horizontal installation -4...122 °F (-20...50 °C) vertical installation |
| Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2 8 kV on air IEC 61000-4-2 |
MPN
TMSES4
