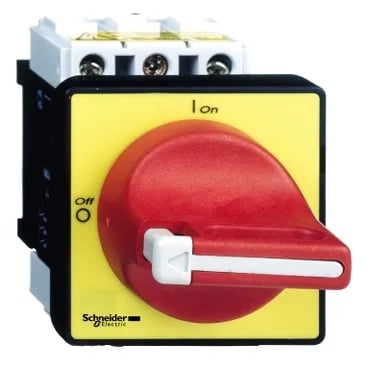

Schneider Electric VCF1
MPN VCF1
Active
Switch disconnector,TeSys Control,for ON/emergency stop,32A,4 screws fixing,for mounting on door
$25.90
Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Rotary handle |
| Network type | DC AC |
| Product type | Emergency stop switch disconnector |
| Current | 21.8 A AC-23 Ue: 400 V |
| Breaking capacity | 250 A 400 V AC-21 A) 250 A 400 V AC-22 A) 250 A 400 V AC-23 A) |
| Poles | 3P |
| IP rating | IP20 / IP65 |
| Mounting | By 4 screws handle |
| Temp operating max | 50 °C |
| Temp operating min | -20 °C |
| Width | 2.4 in (60 mm) |
| Height | 2.9 in (74 mm) |
| Electrical life cycles | 100000 cycles AC-21 30000 cycles DC-1...5 |
| Mechanical life cycles | 100000 cycles |
| Safety category | High performance |
| Operating temperature | -4...122 °F (-20...50 °C) |
MPN
VCF1
