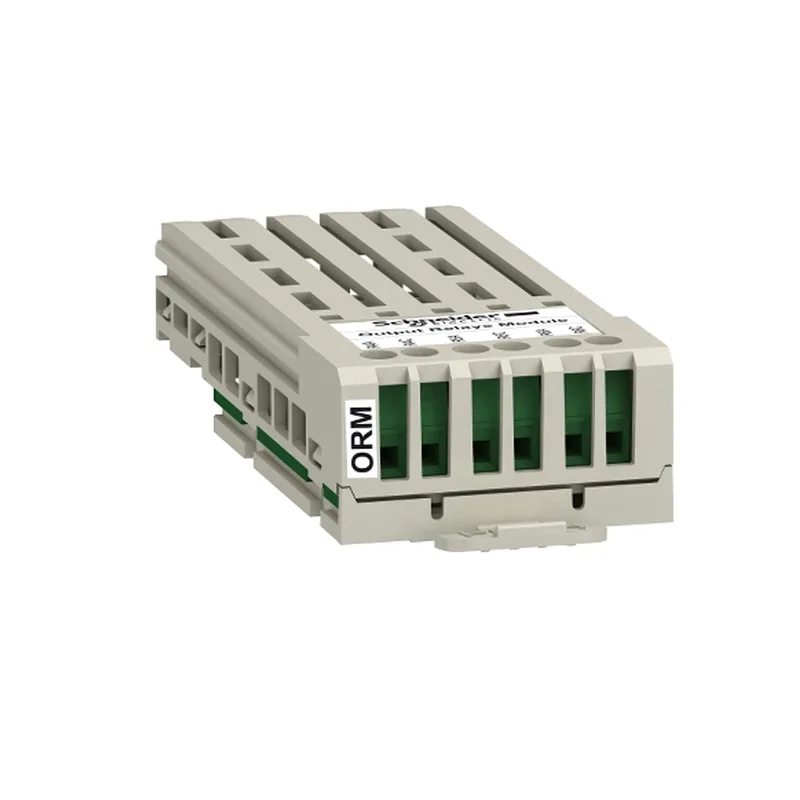

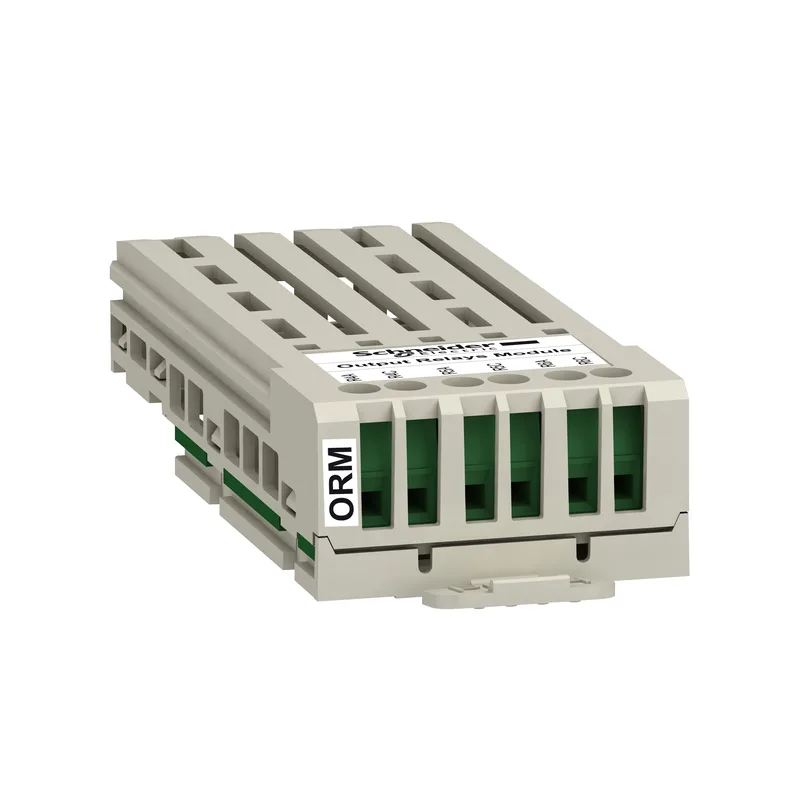

Schneider Electric VW3A3204
MPNVW3A3204
Active
SQD VW3A3204 OUTPUT RELAYS EX|SQD VW3A3204 OUTPUT RELAYS EX
$64.77Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Input (Output type) | 3 relay output |
| Discrete output type | R4, R5, R6) relay normally open 1 ms |
| Product or component type | Additional output module |
| Maximum switching current | 2 A 250 V AC inductive, cos phi = 0.4 5 ms 2 A 30 V DC inductive, cos phi = 0.4 5 ms 5 A 250 V AC resistive, cos phi = 1 5 ms 5 A 30 V DC resistive, cos phi = 1 5 ms |
| Minimum switching current | 5 mA 24 V DC |
| Electrical connection | Screw terminal block, 1.5 mm² / AWG 16, 4.4 lbf.in (0.5 N.m) |
| Electrical durability | 100000 cycles |
| Category | US1CP4E22207 |
| Discrete output number | 3 |
MPN
VW3A3204
