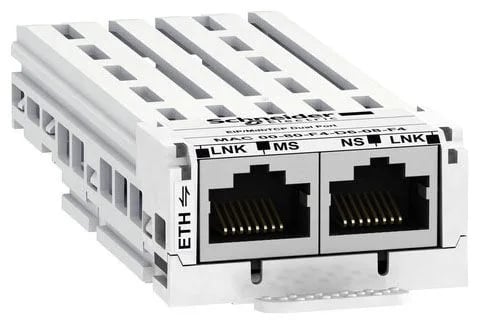

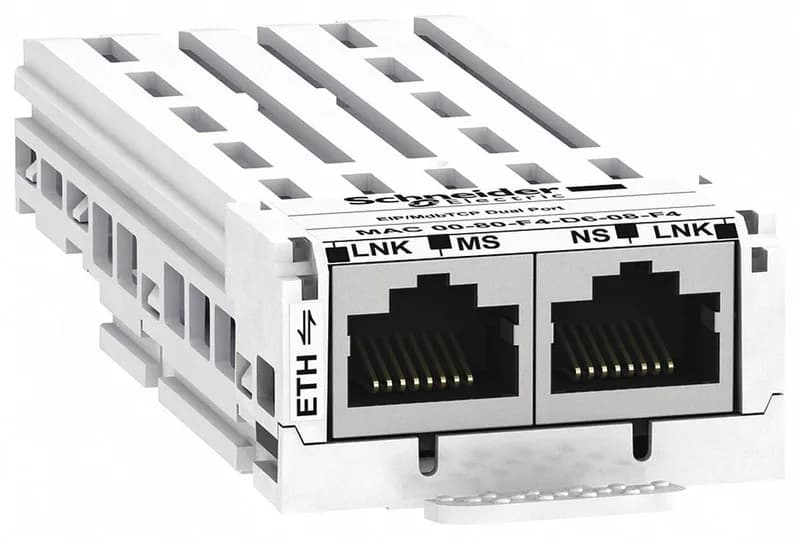

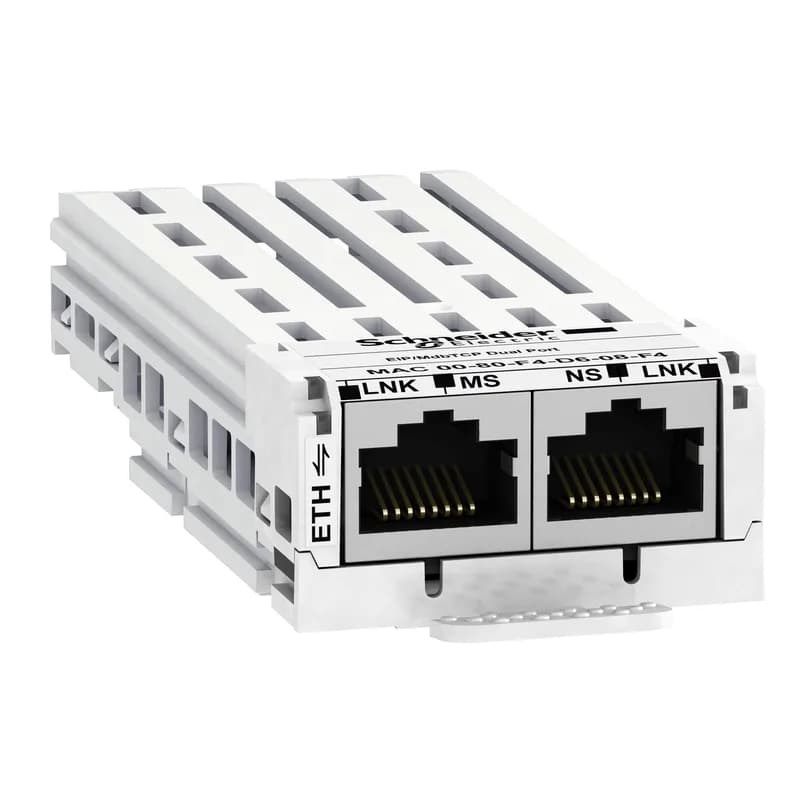

Schneider Electric VW3A3721
MPNVW3A3721
Active
MULTIVFD ETHERNET COMMS MODULE ATV600|MULTIVFD ETHERNET COMMS MODULE ATV600
$228.60Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Display type | 1 LED MS (Module Status) 1 LED NS (Network Status) 1 LED TX/RX (Transmit/Receive port 1) 1 LED TX/RX (Transmit/Receive port 2) |
| Range of product | Altivar |
| Product or component type | Communication module |
| Communication network type | IPv6 (internet protocol) |
| Communication service | SNMP agent Ethernet IP Modbus TCP server Ethernet IP/Modbus TCP Ethernet/IP adapter Ethernet IP RSTP support Ethernet IP FTP Ethernet IP ODVA AC drive and CiA 402 profile Ethernet IP/Modbus TCP Auto-MDIX Ethernet IP/Modbus TCP 32 parameters IN - 32 parameters OUT implicit messaging Ethernet IP/Modbus TCP FDR Ethernet IP/Modbus TCP |
| Communication port protocol | MD-Link EtherNet/IP Modbus TCP |
| Time synchronisation protocol | SNTP |
| Electrical connection | 2 connectors RJ45, Ethernet IP/Modbus TCP/MD-Link |
| Category | US1CP4E22276 |
| Topology | Daisy chain |
| Web server | Embedded HTTP server |
| Bus profile | CIP AC Drive CiA 402 |
| Web services | Widgets (ID, control, data table, diagnostic, charts) Energy monitoring Customizable home page Save/restore drive configuration Ethernet setting and diagnostic Pump function setting and monitoring Upgrade drive firmware Drive monitor Drive setting and diagnostic |
| Exchange mode | Half duplex and full duplex |
| Transmission rate | 10/100 Mbps |
MPN
VW3A3721
