Schneider Electric VW3A4558 — Motor Control Accessories

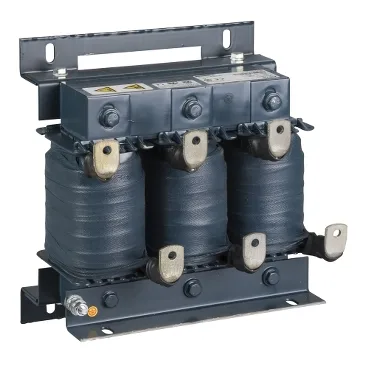

Schneider VW3A4558 Altivar 71 line choke, 0.155 mH, 184 A, 220 W

MPNVW3A4558

Obsolete

Schneider Altivar VW3A4558 line choke, 0.155 mH, 184 A, three-phase, 220 W, IP00, for Altivar 71 and Altivar 61 drives, discontinued.

$204.08Ref. price · indicative, final on quote

Add to RFQ

Schneider Electric VW3A4558 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

VW3A4558 — Identification
Parameter	Value
Product / component type	Line choke
Product range	Altivar

VW3A4558 — Electrical
Parameter	Value
Rated current (In)	184 A

VW3A4558 — Cable & Connector
Parameter	Value
Electrical connection	Bare wires diameter: 9 mm

VW3A4558 — Mechanical
Parameter	Value
Width	280 mm
Height	330 mm
Depth	210 mm

VW3A4558 — Environmental
Parameter	Value
IP protection rating	Choke: IP00 Terminals: IP00
Operating ambient temperature	45...55 °C (with current derating of 2 % per °C) 0...45 °C (without current derating)
Storage ambient temperature	-25...70 °C
Relative humidity	0...95 %
Operating altitude	1000...3000 m with current derating 1 % per 100 m
Environmental class	3B1 conforming to IEC 721-3-3 3C2 conforming to IEC 721-3-3 3S1 conforming to IEC 721-3-3

VW3A4558 — Approvals
Parameter	Value
Conformance standards	EN 50178 IEC 60076 (with HD398) VDE 0160 level 1

Product details

Overview

The VW3A4558 is a three-phase line choke for the Schneider Altivar 71 and Altivar 61 drive ranges, rated 0.155 mH inductance and 184 A switching current, dissipating 220 W. It is designed to reduce current harmonics on the line side of the drive. It is compatible with specific drive models including ATV61HD90N4D, ATV61WD90N4, ATV61WD90N4C, ATV71HD75N4, and ATV71WD75N4, one choke per drive.

The next step up in the same family is the VW3A4559, rated 0.12 mH and 222 A with 278 W dissipation. The VW3A4558 uses 9 mm bare wire connections; the VW3A4559 uses 11 mm. For a panel originally wired for the VW3A4559, the VW3A4558 cannot drop in without rewiring the larger-gauge cable.

Schneider discontinued the VW3A4558 on 2024-01-02. An RFQ confirms available quantity and lead time for line-down or last-time-buy needs.
