VW3A5101
Schneider Electric VW3A5101
MPNVW3A5101
Active

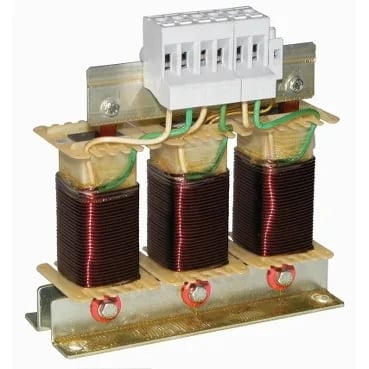

motor choke, Altivar, for variable speed drive, 12A
$186.69Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product type | Motor choke |
Mechanical & Cooling
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 (with kits VW3A9612,613) IP00 |
Environmental
| Parameter | Value |
|---|---|
| Operating ambient temperature | -10...50 °C |
| Storage / transport temperature | -25...70 °C |
Protection & EMC
| Parameter | Value |
|---|---|
| Protection functions | Thermal protection by temperature-controlled switch, tripping temperature: 125 °C for <250 V AC, <0.5 A |
Other specifications
| Parameter | Value |
|---|---|
| Dv (Dt) | 500 V/µs max at 400 V |
| Thermal losses | 150 W |
| Nedded quantity | 1 |
| Tightening torque | 1.5 N.m |
| Current | 12 A |
| Electrical connection | Terminal, connection capacity: 10 mm² / AWG 6 |
| Maximum motor cable length | 75 m shielded cable P motor 0.75...4 kW at 380...480 V 1 90 m unshielded cable P motor 0.75...4 kW at 380...480 V 1 150 m shielded cable P motor 0...2.2 kW at 200...240 V 1 300 m unshielded cable P motor 0...2.2 kW at 200...240 V 1 |
| Product specific application | Output filter |
| Maximum drive output frequency | 100 Hz |
