VW3A5102
Schneider Electric VW3A5102
MPNVW3A5102
Obsolete

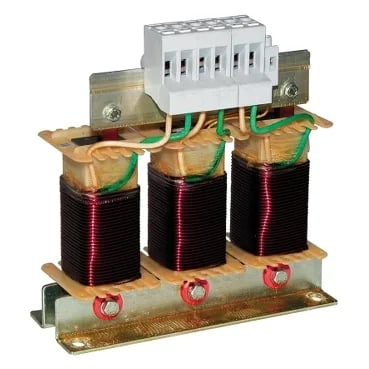

motor choke, Ativar, for variable speed drive, 48A
$220.98Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product / component type | Motor choke |
Mechanical
| Parameter | Value |
|---|---|
| Terminal / wiring connection | Terminal, connection capacity: 10 mm² / AWG 6 |
Environmental
| Parameter | Value |
|---|---|
| IP rating (with kit options) | IP20 (with kits VW3A9612,613) IP00 |
| Operating ambient temperature | -10...50 °C |
| Storage temperature | -25...70 °C |
Other specifications
| Parameter | Value |
|---|---|
| Dv (Dt) | 500 V/µs max at 400 V 750 V/µs max at 500 V 1000 V/µs max at 690 V |
| Thermal losses | 250 W |
| Nedded quantity | 1 |
| Protection type | Thermal protection by temperature-controlled switch, tripping temperature: 125 °C for <250 V AC, <0.5 A |
| Tightening torque | 1.5 N.m |
| Current | 48 A |
| Maximum motor cable length | 200 m shielded cable P motor 2.2...7.5 kW at 200...240 V 1 260 m unshielded cable P motor 2.2...7.5 kW at 200...240 V 1 85 m shielded cable P motor 0.75...18.5 kW at 380...480 V 1 95 m unshielded cable P motor 0.75...18.5 kW at 380...480 V 1 50 m shielded cable P motor 2.2...7.5 kW at 500...600 V 1 100 m unshielded cable P motor 2.2...7.5 kW at 500...600 V 1 45 m shielded cable P motor 2.2...11 kW at 500...690 V 1 70 m unshielded cable P motor 2.2...11 kW at 500...690 V 1 |
| Product specific application | Output filter |
| Maximum drive output frequency | 100 Hz |
MPN
VW3A5102
