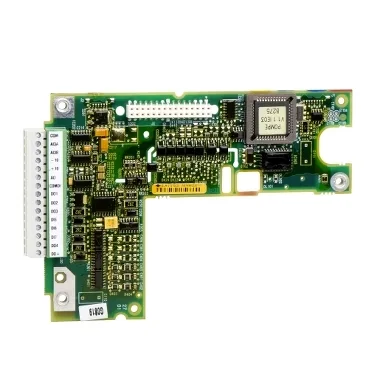

Schneider Electric VW3A58210 — Motor Control Accessories

Schneider VW3A58210 Extended I/O Card for Altivar 58, Obsole

MPNVW3A58210
Obsolete

Schneider Electric Altivar 58 extended I/O card, VW3A58210, pump switching option, obsolete — 1 analog input, 1 analog output, 2 logic inputs, 1 logic output, PTC probe input, screw terminal block.

Schneider Electric VW3A58210 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

VW3A58210 — Identification
ParameterValue
Product / component typeExtended I/O card
VW3A58210 — Cable & Connector
ParameterValue
Electrical connectionScrew terminal block, 1.5 mm² / AWG 16
VW3A58210 — Other specifications
ParameterValue
SupplyInternal supply, 24 V DC (21...27 V) , Internal supply for logic inputs, 10 V DC (9...11 V) , <0.01 A, impedance: 1...10 kOhm for overload and short-circuit protection
PTC probe inputresistance PTC, impedance: 750 Ohm
Protection typeReverse polarity protection: digital input Short-circuit protection: output
Input (output type)1 analog output 0...20 mA 1 analogue input differential 2 logic input impedance 1 logic output voltage analog input
Analogue input typeAI differential: 0...10 V DC, 24 V, impedance: 30000 Ohm, resolution: 10 bits
Analogue output typeAO switch-configurable current: 0...20 mA DC, impedance: 500 Ohm, sampling time: 2 ms, resolution: 9 bits + sign
Analogue input number1
Discrete output logicNegative Positive
Electrical durability100000 cycles for open collector
Analogue output number1
Discrete input voltage24 V DC (voltage limits: <= 30 V) for assignable
Discrete output number1
Maximum output current0.2 A, assignable logic
Discrete output voltage24 V DC (voltage limits: 12...30 V) assignable logic
Minimum switching current5 mA at 24 V DC

Product details

Extended I/O card for Altivar 58 — obsolete, sourced to order

The VW3A58210 is an extended I/O card for the Altivar 58 drive series, specifically the pump switching option. It provides one differential analog input (0–10 V DC, 24 V, 10-bit resolution), one switch-configurable analog output (0–20 mA, 9-bit + sign, 2 ms sampling), two logic inputs (24 V DC, ≤30 V), and one assignable logic output (24 V DC, 0.2 A max, open collector rated for 100,000 cycles).

I/O map and supply rails

A PTC probe input (750 Ω impedance) is present for motor thermal protection. The screw terminal block accepts up to 1.5 mm² / AWG 16. Reverse polarity protection is provided on the digital input; the output has short-circuit protection.

Frequently asked questions

Where can I buy VW3A58210?

The VW3A58210 is sourced through independent distribution channels — quoted to order against an RFQ. Availability and current pricing are confirmed at quote time; no stock figures or lead-time numbers are published here.

What is the closest alternative to VW3A58210?

There is no pin-compatible or functional drop-in replacement from Schneider's current Altivar range. The card's backplane interface and form factor are specific to the Altivar 58 platform, which is discontinued. Any alternative would require a drive upgrade.

MPN
VW3A58210
