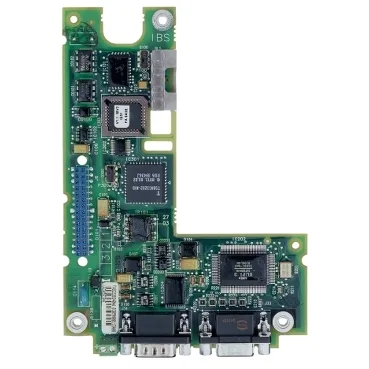

Schneider Electric ATV58 option, Interbus-S communication card, VW3A58304E, female SUB-D 9 / male SUB-D 9, separate VCC supply.
| Parameter | Value |
|---|---|
| Product / component type | Communication cards |
| Parameter | Value |
|---|---|
| Connector type | Female SUB-D 9 Male SUB-D 9 |
| Parameter | Value |
|---|---|
| Communication port protocol | Interbus-S |
The VW3A58304E is an Interbus-S communication card option for the ATV58 drive family. It uses a female SUB-D 9 connector on the drive side and a male SUB-D 9 on the fieldbus side. The card requires a separate VCC supply — it does not draw its power from the drive's backplane.
The separate VCC supply means you need to budget a 24 VDC auxiliary feed in the panel for this card. Standard pinout on the SUB-D 9 follows the Interbus-S physical layer spec; no custom wiring needed.
The VW3A58304E is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
The card has a female SUB-D 9 connector on the drive interface and a male SUB-D 9 on the fieldbus cable side.
It supports Interbus-S, a deterministic fieldbus protocol common in European machine-building applications.
