Schneider Electric VW3AP0421 — Motor Control Accessories

VW3AP0421 indicator lamp, 24 V, for ATV600/ATV900

MPNVW3AP0421
Active

Schneider Electric, Altivar Process, indicator lamp, VW3AP0421, 24 V, 3-lamp, for ATV600/ATV900 drive systems.

Schneider Electric VW3AP0421 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

VW3AP0421 — Identification
ParameterValue
Accessory categorySignalling accessory
Accessory typeIndicator lamp
Destination / intended useCompact drive system
Product rangeAltivar Process ATV600 Altivar Process ATV900
Conditions of useCannot be ordered alone, only possible in combination with a standard enclosure
VW3AP0421 — Other specifications
ParameterValue
Device composition3 lamp
Supply voltage24 V

Product details

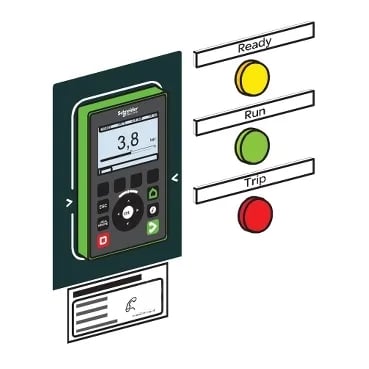

The VW3AP0421 is a 3-lamp indicator assembly that mounts on the front door of an Altivar Process ATV600 or ATV900 drive enclosure. It signals drive status at 24 VDC — the standard control voltage for these compact drive systems. The accessory is classified as a signalling accessory and is part of the drive system's front-door indication kit. It cannot be ordered alone — it must be combined with a standard enclosure (the drive's own cabinet).

Because the VW3AP0421 is a bundled accessory tied to the ATV600/ATV900 enclosure, sourcing it as a standalone spare requires specifying the drive model it will mount on.

Frequently asked questions

Where can I buy VW3AP0421 and how do I get a price?

The VW3AP0421 is sourced to order against an RFQ. Submit a quote request through the storefront; the commercial team will confirm availability and current pricing at quote time. Because the part cannot be ordered alone (it must be combined with a standard enclosure), include the target ATV600 or ATV900 drive model in your RFQ notes.

What is the condition of use for VW3AP0421?

The VW3AP0421 cannot be ordered alone — it is only available as part of a combination with a standard enclosure. This means the indicator lamp ships as a front-door kit matched to the ATV600/ATV900 cabinet.
