What this dv/dt filter does on the output side

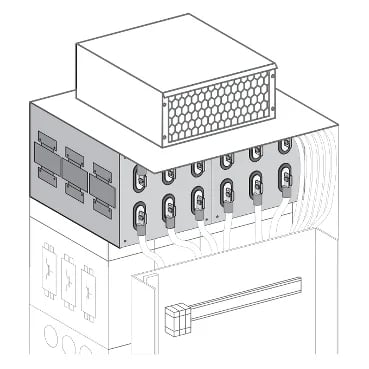

The VW3AP0614 is a dv/dt filter choke designed for Altivar Process ATV600 and ATV900 drive systems rated 560 to 630 kW. It sits on the drive output to limit the voltage rise rate (dv/dt) at the motor terminals, protecting winding insulation on long cable runs — specifically rated for up to 300 m of shielded motor cable. This is a protection accessory, not a standalone component; it cannot be ordered alone and must be combined with a standard enclosure.
Integration note for the panel builder
Because the VW3AP0614 is a dv/dt choke for the compact drive system format, it is sized for the output stage of the 560–630 kW drive frame. The 300 m cable length rating means it handles the reflected-wave stress on those long motor leads without requiring an additional output reactor in most installations. Mount it inside the standard enclosure called out in the drive system design — the choke itself has no standalone enclosure rating.
