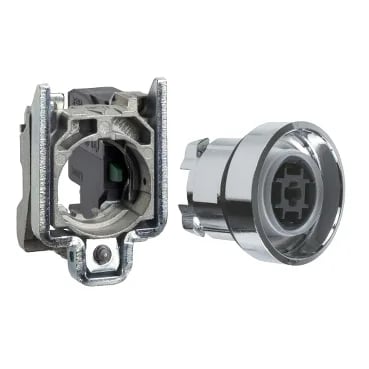

Schneider Electric XB4BA01

Schneider Electric XB4BA01

MPN XB4BA01
Obsolete

complete pushbutton XB4 - Ø22 mm - 1NO + 1NC - spring return

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

XB4BA01 specifications
ParameterValue
Main product or component typePush-button
Insulation voltage ui600 V (pollution degree 3) conforming to EN/IEC 60947-1
Current3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
IP ratingIP66 / IP67 / IP69 / IP69K
NEMA ratingNEMA 13 NEMA 4X
Temp storage max70 °C
Temp storage min-40 °C
Temp operating max70 °C
Temp operating min-40 °C
Storage temperature-40...70 °C
Depth52 mm
Width30 mm
Height47 mm
Electrical life cycles1000000 cycles, AC-15, 2 A at 230 V, operating rate 1000000 cycles, AC-15, 3 A at 120 V, operating rate 1000000 cycles, AC-15, 4 A at 24 V, operating rate 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Mechanical life cycles10000000 cycles
Contact operationSlow-break
Operating temperature-40...70 °C
MPN
XB4BA01
