Schneider Electric XB4BK126M5 — Emergency Stop Pushbuttons

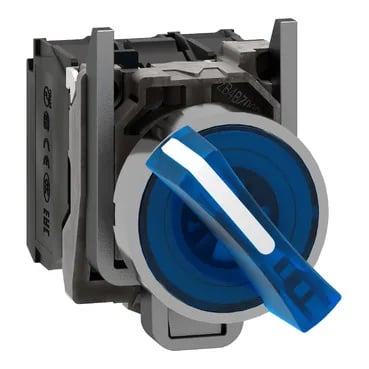

Schneider Electric XB4BK126M5

MPNXB4BK126M5
Obsolete

Illuminated selector switch, Harmony XB4, metal, blue handle, 22mm, universal LED, 2 positions, stay put, 1NO, 230V

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

XB4BK126M5 — Identification
ParameterValue
Product typeIlluminated selector switch
Product rangeHarmony XB4
Device short nameXB4
Operator profileBlue standard handle
XB4BK126M5 — Function & Operation
ParameterValue
Signaling head shapeRound
XB4BK126M5 — Switching & Contacts
ParameterValue
Mechanical durability (cycles)1000000 cycles
XB4BK126M5 — Mechanical
ParameterValue
Mounting diameter22 mm
Height47 mm
Width30 mm
XB4BK126M5 — Environmental
ParameterValue
IP protection ratingIP66 conforming to IEC 60529 IP67 IP69 IP69K
Operating temperature range-40...70 °C
Storage temperature range-40...70 °C
Vibration resistance5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
XB4BK126M5 — Approvals & Standards
ParameterValue
Standards / approvalsIEC 60947-5-4 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-5-5 UL 508 IEC 60947-1 IEC 60947-5-1 JIS C8201-1
MPN
XB4BK126M5
