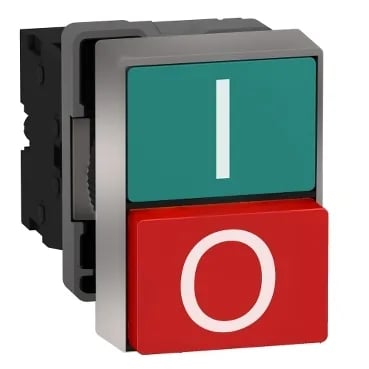

Schneider Electric XB4BL9325 — Emergency Stop Pushbuttons

Schneider Electric XB4BL9325

MPNXB4BL9325
Obsolete

green flush/red projecting illuminated double-headed pushbutton Ø22 1NO+1NC 24V

Schneider Electric XB4BL9325 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

XB4BL9325 — Identification
ParameterValue
Product typeComplete double-headed push-button
Product rangeHarmony XB4
Device short nameXB4
Operator profile1 flush - 1 projecting push-buttons

Function & Operation

XB4BL9325 — Function & Operation
ParameterValue
Signaling head shapeRectangular

Switching & Contacts

XB4BL9325 — Switching & Contacts
ParameterValue
Mechanical durability (cycles)1000000 cycles

Mechanical

XB4BL9325 — Mechanical
ParameterValue
Mounting diameter22.5 mm
Height47 mm
Width30 mm

Environmental

XB4BL9325 — Environmental
ParameterValue
IP protection ratingIP67 conforming to IEC 60529 IP69 IP69K
Operating temperature range-40...70 °C
Storage temperature range-40...70 °C
Vibration resistance5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Approvals & Standards

XB4BL9325 — Approvals & Standards
ParameterValue
Standards / approvalsJIS C8201-5-1 IEC 60947-5-1 UL 508 IEC 60947-1 IEC 60947-5-5 CSA C22.2 No 14 IEC 60947-5-4 JIS C8201-1
MPN
XB4BL9325
