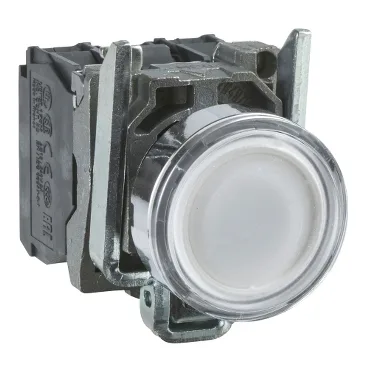

Schneider Electric XB4BW16B5

Schneider XB4BW16B5 22mm Illuminated Pushbutton, 10A, Obsole

MPN XB4BW16B5
Obsolete

Schneider XB4 series, 22 mm illuminated pushbutton, chromium plated metal bezel, 10 A rated, DC-13/AC-15 utilisation, NEMA 4X/13.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

XB4BW16B5 specifications
ParameterValue
Utilization categoryDC-13 AC-15
NEMA ratingNEMA 4X/13

Product details

The Schneider XB4BW16B5 is a 22 mm illuminated pushbutton from the XB4 metal range, designed for panel-mount control stations. The chromium plated metal bezel gives it a corrosion-resistant finish suited to washdown or outdoor environments — NEMA 4X/13 means it withstands hose-directed water, dust, and oil, so it fits food processing, chemical plants, or marine panels. Rated 10 A in DC-13 and AC-15 utilisation categories, it switches inductive loads like contactor coils and solenoid valves. The 22 mm mounting diameter is the industry-standard hole size for metal pushbuttons.

The 10 A rating at DC-13 is the inductive DC switching limit — that is the number that governs real-world coil or solenoid loads, not the higher AC-15 figure.

MPN
XB4BW16B5
