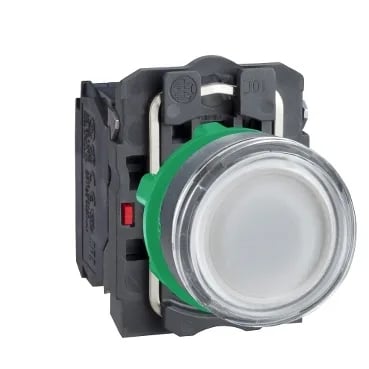

Schneider Electric XB5AA18S49 — Emergency Stop Pushbuttons

Schneider Electric XB5AA18S49

MPNXB5AA18S49
Obsolete

Push button, Harmony XB5, white flush illuminated pushbutton 2NC spring return, LED 24 V AC, i label

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

XB5AA18S49 — Identification
ParameterValue
Product typePush-button
Product rangeHarmony XB5
Device short nameXB5
Operator profileWhite flush, unmarked
XB5AA18S49 — Function & Operation
ParameterValue
Signaling head shapeRound
XB5AA18S49 — Switching & Contacts
ParameterValue
Mechanical durability (cycles)10000000 cycles
XB5AA18S49 — Mechanical
ParameterValue
Mounting diameter22 mm
Height42 mm
Width30 mm
XB5AA18S49 — Environmental
ParameterValue
IP protection ratingIP66 conforming to IEC 60529 IP67 IP69 IP69K
Operating temperature range-40...70 °C
Storage temperature range-40...70 °C
Vibration resistance5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
MPN
XB5AA18S49
