Schneider Electric XB5RFA02

Schneider XB5RFA02 Wireless & Batteryless Push Buttons, Zigb

MPNXB5RFA02
Active

Schneider Electric Harmony XB5R wireless and batteryless push-button kit, 1 channel, 2 relay output receiver, 24-240 V AC/DC supply, Zigbee communication, CE marked, UL/CSA certified.

$119.38Ref. price · indicative, final on quote
Schneider Electric XB5RFA02 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

XB5RFA02 key specifications
ParameterValue
Antenna typeOmnidirectional
Control typeWireless and batteryless push-button Ø 22 mm assembled on fixing collar
Range of productHarmony XB5R
Type of receiverProgrammable receiver 2 relays)
Product or component typeWireless and batteryless package
Supply voltage24...240 V AC/DC 50/60 Hz
Max power consumption in1 mW
Frequency2405 MHz transmitter 2405 MHz receiver
Communication port protocolZigbee IEEE 802.15.4
Bandwidth5 MHz
Head materialPlastic
StandardsCSA C22.2 No 14 IEC 60947-5-1 UL 508 IEC 60947-1

All specifications

XB5RFA02 additional specifications
ParameterValue
MarkingCE
CategoryUS1000I22470
Status LED1 LED Green power ON 2 LEDs Green relay ON 2 LEDs Green function mode 1 LED green and yellow reception signal
Antenna gain0 dBi
Emission class5M00G7W

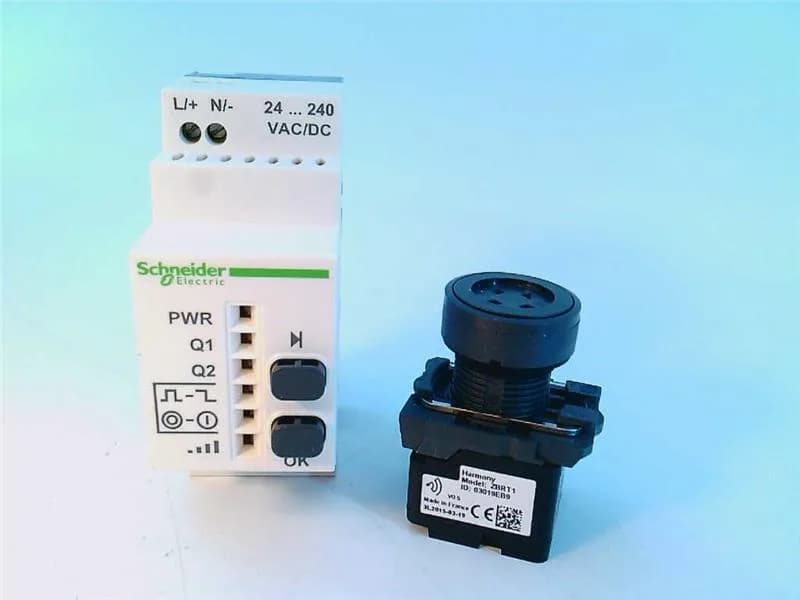

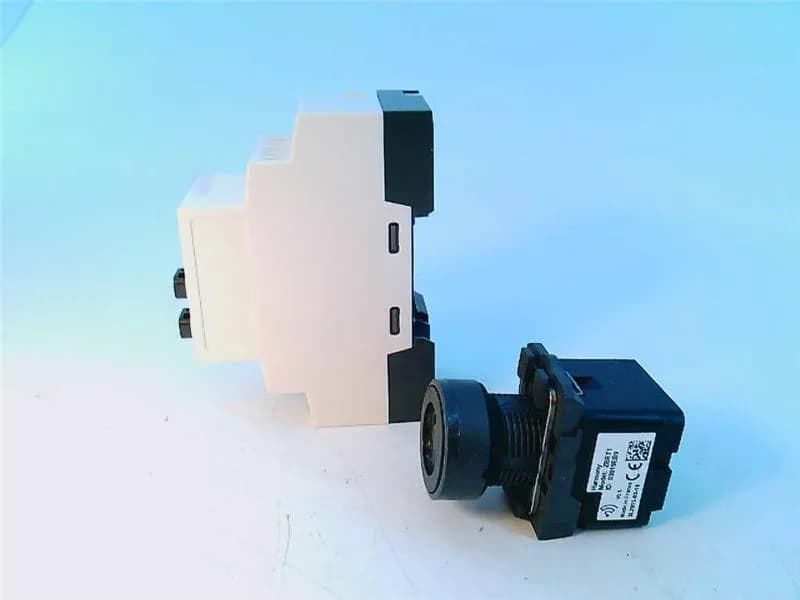

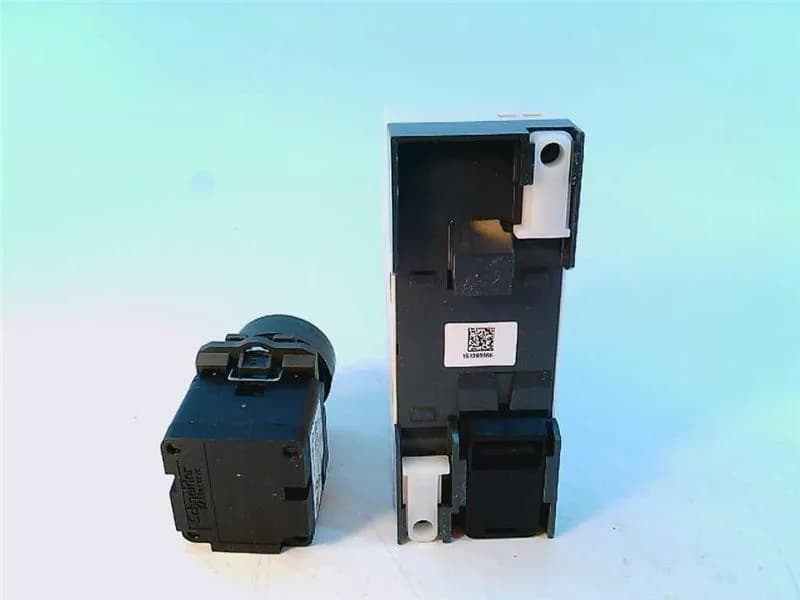

Kit composition1 transmitter 1 set of caps 1 receiver 1 fixing collars 1 0.9 in (22 mm) 1 push-button head 0.9 in (22 mm)
Radio agreementSRRC RSS ARIB T66 FCC ICASA ANATEL
Device short nameXB5R
Channels1
Modulation techniqueO-QPSK

Product details

The XB5RFA02 is a factory-paired wireless push-button kit from Schneider's Harmony XB5R series. It communicates over Zigbee (IEEE 802.15.4) at 2405 MHz with O-QPSK modulation and a 5 MHz bandwidth, eliminating wiring to the push-button location. The receiver is powered from 24 to 240 V AC/DC and provides two relay outputs rated per IEC 60947-5-1 and UL 508. The kit includes 1 transmitter, 1 programmable receiver, 1 22 mm plastic push-button head, 1 fixing collar, and 1 set of caps.

Standards and Sourcing

The radio agreements (FCC, ICASA, ANATEL, SRRC, RSS, ARIB T66, and SRRC) are listed, supporting global deployment.

Frequently asked questions

What is the listed marking for the XB5RFA02?

The marking is CE.

What is the category code for the XB5RFA02?

The Schneider internal category code is US1000I22470.

What compliance standards does the XB5RFA02 meet?

It complies with UL 508, IEC 60947-5-1, CSA C22.2 No. 14, and IEC 60947-1, and carries CE marking.
