Schneider Electric XCKD2118M12
MPNXCKD2118M12

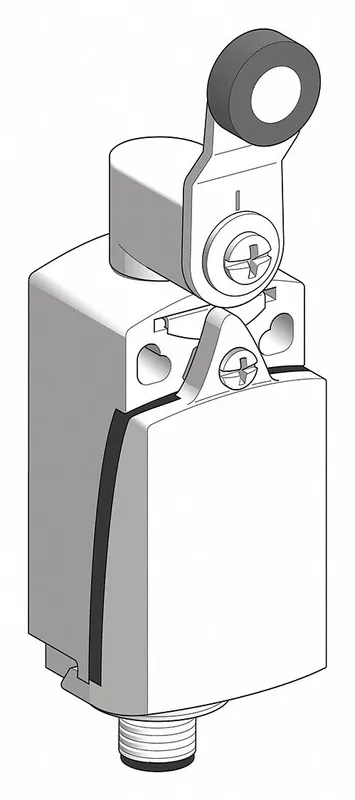

TELEMECANIQUE SENSORS Limit Switch: 90°, Roller Lever, XCKD, 0.22 in Roller Wd, 2 Mounting Holes
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XCKD |
| Actuation | Roller Lever |
| Contact form | 1NO/1NC |
| IP rating | IP67 |
| NEMA enclosure rating | 1; 2; 4; 6; 12; 13 |
| Mounting style | Surface |
| Mounting hole diameter | 0.17 in |
| Number of mounting holes | 2 |
| Mounting hole horizontal center to center distance | 22 mm |
| Electrical connection | 5-Pin M12 Connector |
| Operating temperature - maximum | 158 °F |
| Operating temperature - minimum | -13 °F |
All specifications
| Parameter | Value |
|---|---|
| Body depth | 1.18 in |
| Body width | 1.22 in |
| Body height | 2.56 in |
| Arm material | Metal |
| Roller width | 0.22 in |
| Body material | Zamak |
| Overall depth | 1.18 in |
| Overall width | 1.22 in |
| Overall height | 2.56 in |
| Roller material | Thermoplastic |
| Standards | CE; CSA; UL Listed |
| Brand | TELEMECANIQUE SENSORS |
| Total travel | 90° |
| Actuator style | Roller Lever Plunger |
| Actuator length | 1.3 in |
| Roller diameter | 0.75 in |
| AC contact rating | 4 A @ 240 V |
| Actuator location | Side |
| DC contact rating | 4 A @ 240 V |
| Boot sealed actuator | No Boot Included |
| Directional movement | CCW/CW |
| Resistance properties | Shock Resistant; Vibration Resistant |
| Operating torque - maximum | 0.9 in-lb |
MPN
XCKD2118M12
