Schneider Electric XCKJ10541H7
MPNXCKJ10541H7

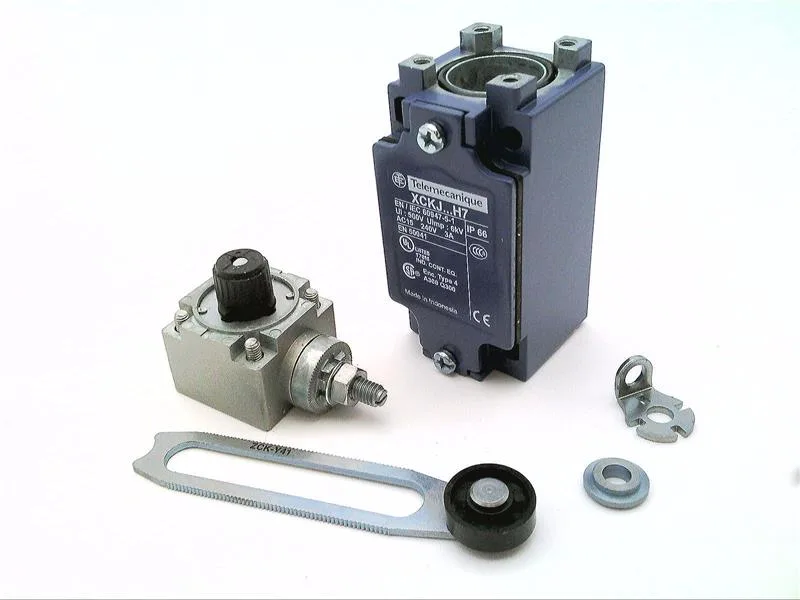

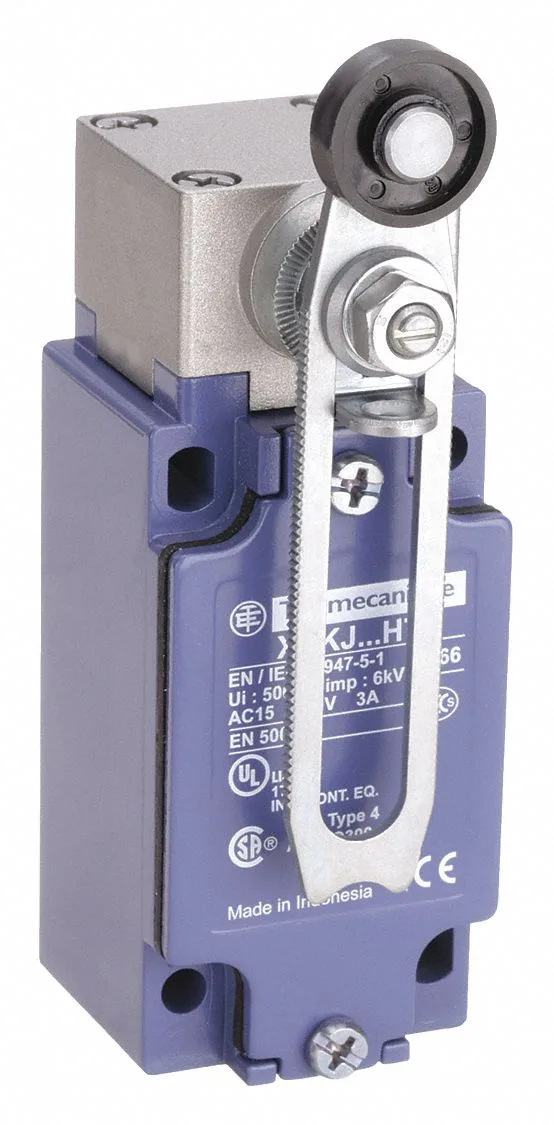

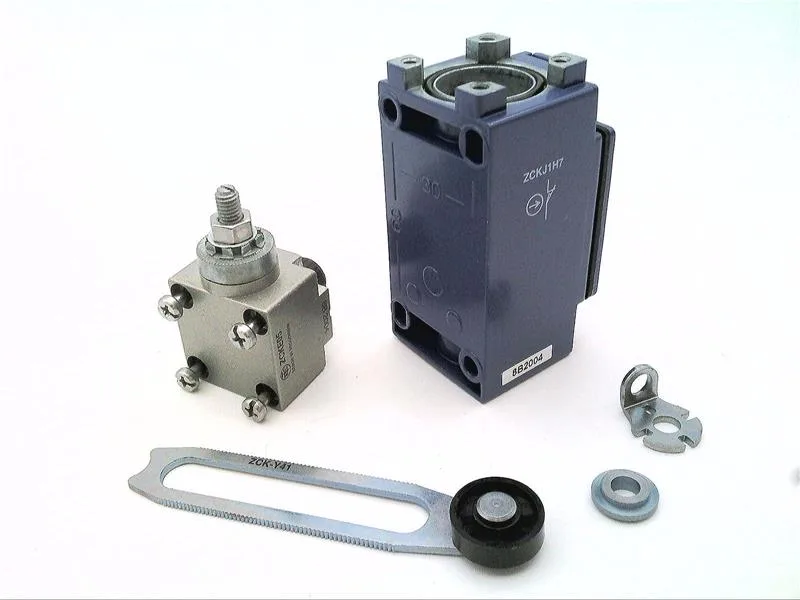

Telemecanique XCKJ10541H7 Limit Switch 240Vac 10Amp Xckj +Options|SQUARE D XCKJ10541H7: LIMIT SWITCH 240VAC 10AMP XCKJ +OPTIONS
$31.75Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XCKJ |
| Actuation | Roller Lever |
| Contact form | 1NO/1NC |
| IP rating | IP66 |
| NEMA enclosure rating | 1; 2; 4; 12; 13 |
| Mounting style | Surface |
| Mounting hole diameter | 0.21 in |
| Number of mounting holes | 4 |
| Mounting hole vertical center to center distance | 60 mm |
| Mounting hole horizontal center to center distance | 30 mm |
| Electrical connection | Screw Clamp Terminals |
| Operating temperature - maximum | 158 °F |
All specifications+22 ▾
| Parameter | Value |
|---|---|
| Operating temperature - minimum | -13 °F |
| Body depth | 1.73 in |
| Body width | 1.57 in |
| Body height | 4.01 in |
| Roller width | 0.22 in |
| Body material | Zamak |
| Overall depth | 1.73 in |
| Overall width | 1.57 in |
| Overall height | 3.03 in |
| Roller material | Thermoplastic |
| Standards | CCC; CSA; CSA C22.2 No.14; EN/IEC 60204-1; EN/IEC 60947-5-1; UL 508; UL Listed |
| Brand | TELEMECANIQUE SENSORS |
| Total travel | 90° |
| Actuator style | Roller Lever Plunger |
| Roller diameter | 0.75 in |
| AC contact rating | 3 A @ 240 V |
| Actuator location | Side |
| DC contact rating | 10 A @ 240 V |
| Boot sealed actuator | No Boot Included |
| Directional movement | CCW/CW |
| Resistance properties | Shock Resistant; Vibration Resistant |
| Operating torque - maximum | 2.21 in-lb |
MPN
XCKJ10541H7
