Schneider Electric XCKJ10559H7 — Limit Switches

Telemecanique XCKJ10559H7 Limit Switch, Series XCKJ, IP66, 1

MPNXCKJ10559H7

Telemecanique Sensors XCKJ Series limit switch, order code XCKJ10559H7, IP66, 10 A @ 240 V, 1NO/1NC, lever-rod actuator.

$44.45Ref. price · indicative, final on quote
Schneider Electric XCKJ10559H7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XCKJ10559H7 key specifications
ParameterValue
SeriesXCKJ
ActuationLever-Rod
Contact form1NO/1NC
IP ratingIP66
NEMA enclosure rating1; 2; 4; 12; 13
Mounting styleSurface
Mounting hole diameter0.21 in
Number of mounting holes4
Mounting hole vertical center to center distance60 mm
Mounting hole horizontal center to center distance30 mm
Electrical connectionScrew Clamp Terminals
Operating temperature - maximum158 °F

All specifications

XCKJ10559H7 additional specifications
ParameterValue
Operating temperature - minimum-13 °F
Arm width0.24 in
Body depth1.89 in
Body width1.57 in
Body height4.01 in
Arm materialThermoplastic
Body materialZamak
Overall depth1.73 in
Overall width1.57 in
Overall height3.03 in
StandardsCCC; CENELEC EN 50041; CSA; CSA C22.2 No.14; EN 60204-1; EN 60947-5-1; IEC 60204-1; IEC 60947-5-1; UL 508; UL Listed
Total travel90°
Actuator styleRod
Actuator length8.35 in
AC contact rating10 A @ 240 V
Actuator locationSide
DC contact rating10 A @ 240 V
Boot sealed actuatorNo Boot Included
Directional movementCCW/CW
Resistance propertiesShock Resistant; Vibration Resistant
Operating torque - maximum2.21 in-lb

Product details

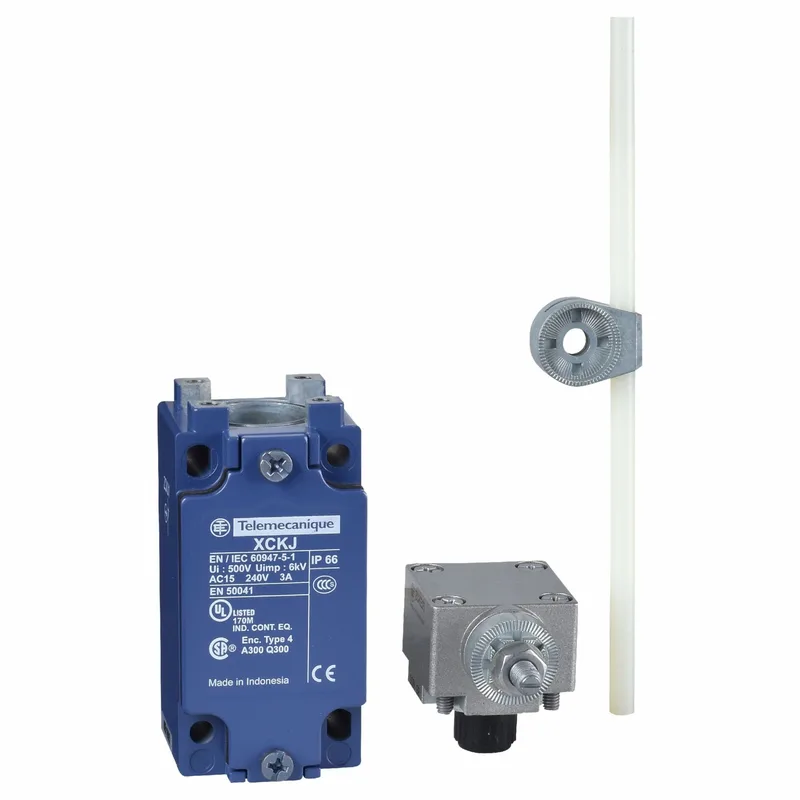

The Telemecanique XCKJ10559H7 is a Series XCKJ limit switch with a lever-rod actuator, rated IP66 for washdown environments. The 1NO/1NC contact block handles 10 A at 240 V AC or DC, covering most motor and solenoid loads in a control panel. Mounting hole centers at 60 mm vertical and 30 mm horizontal match the standard EN 50041 footprint — no drilling or adapter plate needed for a direct swap.

Ratings and approvals

The IP66 rating means the switch body and actuator seal against hose-directed water and dust — suitable for food-and-bev washdown or outdoor gantry cranes. Approvals include UL 508, CSA C22.2 No. 14, CCC, and EN 60947-5-1, so it lands in panels destined for North America, China, or Europe without a separate certification run.

Frequently asked questions

What approvals does this limit switch carry?

It is UL Listed under UL 508, CSA certified per CSA C22.2 No. 14, CCC approved for China, and meets EN 60947-5-1 and IEC 60947-5-1. Also complies with EN 60204-1 and IEC 60204-1 for machine safety circuits.

What is the contact configuration and rating?

1NO/1NC snap-action contacts rated 10 A at 240 V AC or DC. The form C (SPDT) arrangement gives one normally-open and one normally-closed set, wired via screw-clamp terminals.

What is the mounting pattern?

Four holes at 60 mm vertical center-to-center and 30 mm horizontal center-to-center, accepting 0.21 in diameter fasteners. The surface-mount body fits the EN 50041 standard footprint.
