Schneider Electric XCKJ161

Square D XCKJ161 Heavy Duty Limit Switch, SPDT, 240VAC 10A,

MPN XCKJ161

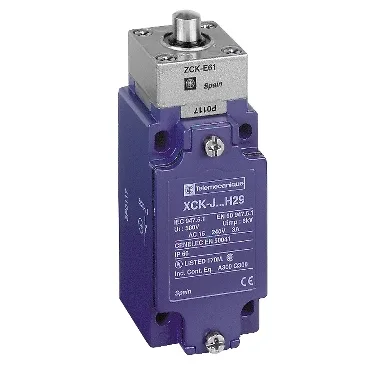

Square D Osiswitch XCKJ161, Heavy Duty Non-Plug-In Limit Switch, SPDT, 240VAC 10A / 250VDC 0.27A, NEMA 1/2/4/12 IP66, Zamak body, Top Rod Plunger.

$26.67 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

XCKJ161 specifications
ParameterValue
Product typeHEAVY DUTY, NON PLUG IN
Operation typeSnap Action, Spring Return
Actuator head typeTop Rod Plunger Head
Temp operating max158 °C
Temp operating min-13 °C
Pretravel0.08 Inch
Total travel0.24 Inch
Differential travel0.035 Inch

Product details

The Square D XCKJ161 is a heavy-duty limit switch from the Osiswitch line, built for industrial position sensing in wet, dusty, or washdown environments. Its NEMA 1/2/4/12 and IP66 enclosure means it seals out hose-directed water and airborne dust — suitable for food-processing lines, machine tools, and outdoor conveyor systems where a standard limit switch would fail from ingress. Contact rating is 240 VAC 10 Ampere and 250 VDC 0.27 Ampere (SPDT, snap-action). The AC figure governs motor-control circuits and solenoid loads; the DC figure is derated significantly because DC arcs are harder to extinguish — at 250 VDC the switch is limited to 0.27 A, so it will not handle a typical 24 VDC sensor load above that current. For DC control circuits, verify the load current stays under the 0.27 A limit at the applied voltage. The top rod plunger actuator (spring return, snap action) provides a direct mechanical interface for cam- or slide-actuated positions. Pretravel is 0.08 inch, differential travel 0.035 inch, total travel 0.24 inch — the narrow differential means the switch changes state with minimal overtravel, useful for precise position detection on indexing tables or press slides.

Construction and integration

Body is Zamak zinc alloy, corrosion-resistant and dimensionally stable under vibration. Connection is via a PG13.5 cable gland with screw-clamp terminals — the gland accepts standard 1/2-inch trade-size conduit or cable, and the screw clamps handle solid or stranded wire up to about 14 AWG. No plug-in base; wiring is direct to the switch body, so replacement requires rewiring at the terminal block. Operating temperature range is -13 to 158 °F (-25 to 70 °C), covering most indoor and sheltered outdoor installations. The switch carries UL and CSA approval, plus compliance with EN/IEC 60204-1 (machine safety) and EN/IEC 60947-5-1 (control circuit devices). These standards are the baseline for industrial control panels in North America and Europe.

MPN
XCKJ161
