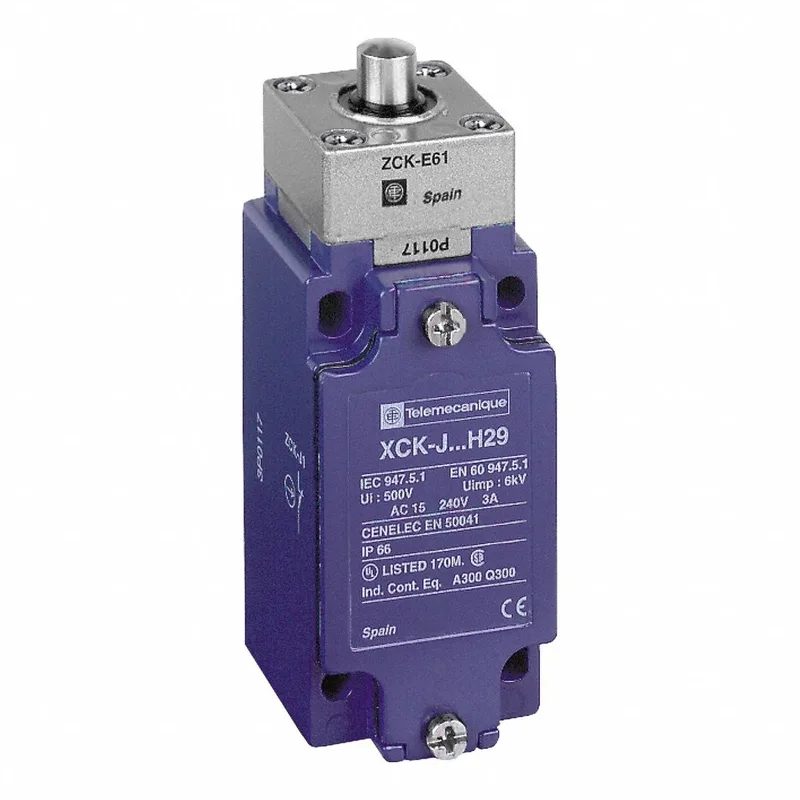

Schneider Electric XCKJ161H7
MPNXCKJ161H7
TELEMECANIQUE SENSORS Limit Switch: Plunger Actuator, Non-Metallic, Plunger, 20 N Op Force - Max
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XCKJ |
| Body material type | Non-Metallic |
| Contact form | 1NO/1NC |
| IP rating | IP66 |
| NEMA enclosure rating | 1; 12; 13; 2; 4 |
| Mounting style | Surface |
| Mounting hole diameter | 0.21 in |
| Number of mounting holes | 4 |
| Mounting hole vertical center to center distance | 60 mm |
| Mounting hole horizontal center to center distance | 30 mm |
| Electrical connection | Screw Clamp Terminals |
| Operating temperature - maximum | 158 °F |
All specifications
| Parameter | Value |
|---|---|
| Operating temperature - minimum | -13 °F |
| Body depth | 1.73 in |
| Body width | 1.57 in |
| Body height | 4.01 in |
| Arm material | Steel |
| Body material | Zamak |
| Overall depth | 1.73 in |
| Overall width | 1.57 in |
| Overall height | 3.03 in |
| Standards | CE; CSA; UL Listed |
| Brand | TELEMECANIQUE SENSORS |
| Actuator style | Plunger |
| Actuator length | 0.28 in |
| AC contact rating | 10 A @ 240 V |
| Actuator location | Top |
| DC contact rating | 10 A @ 240 V |
| Boot sealed actuator | No Boot Included |
| Directional movement | Linear |
| Resistance properties | Shock Resistant; Vibration Resistant |
| Operating force - maximum | 20 N |
MPN
XCKJ161H7
