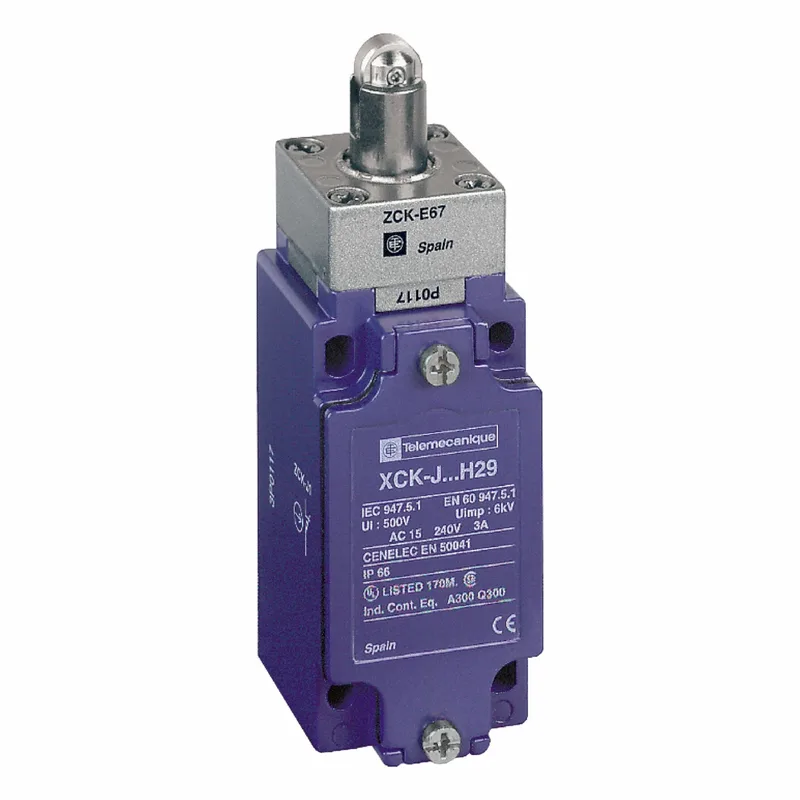

Schneider Electric XCKJ167H7
MPNXCKJ167H7
TELEMECANIQUE SENSORS Limit Switch: Roller Plunger, Non-Metallic, XCKJ
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XCKJ |
| Actuation | Roller Plunger |
| Body material type | Non-Metallic |
| Contact form | 1NO/1NC |
| IP rating | IP66 |
| NEMA enclosure rating | 1; 2; 4; 12; 13 |
| Mounting style | Surface |
| Number of mounting holes | 4 |
| Mounting hole diameter - NEW | 0.21 in |
| Mounting hole vertical center to center distance | 60 mm |
| Mounting hole horizontal center to center distance | 30 mm |
| Electrical connection | Screw Clamp Terminals |
All specifications+26 ▾
| Parameter | Value |
|---|---|
| Operating temperature - maximum | 158 °F |
| Operating temperature - minimum | -13 °F |
| Body depth | 1.73 in |
| Body width | 1.57 in |
| Body height | 4.01 in |
| Roller width | 0.2 in |
| Body material | Zamak |
| Overall depth | 1.73 in |
| Overall width | 1.57 in |
| Overall height | 3.03 in |
| Roller material | Steel |
| Standards | CE; CSA; UL Listed |
| Brand | TELEMECANIQUE SENSORS |
| Display qty | 1 |
| Actuator style | Roller Plunger |
| Actuator length | 0.79 in |
| Roller diameter | 0.47 in |
| Display sell UOM | EA |
| AC contact rating | 10 A @ 240 V |
| Actuator location | Top |
| DC contact rating | 10 A @ 240 V |
| Boot sealed actuator | No Boot Included |
| Directional movement | Linear |
| Resistance properties | Shock Resistant; Vibration Resistant |
| Operating force - maximum | 16 N |
| Operating torque - maximum | 3.6 in-lb |
MPN
XCKJ167H7
