The XCKJ567 is a heavy duty, non-plug-in limit switch from the Telemecanique Osiswitch line, built for position sensing in industrial environments where mechanical endurance and environmental sealing matter. The 240 VAC 10 A contact rating (SPDT slow make/break) handles motor starter coils, solenoid valves, and indicator lamps within that switching capacity — the 250 VDC 0.27 A rating is the limit for DC loads, which is typical for this class and means DC inductive loads need careful derating. The steel top roller plunger actuator provides a 3.2 mm pretravel and 5.3 mm total travel, giving a defined overtravel window for cam or dog actuation on conveyors, transfer lines, or machine guards. The NEMA 1/2/4/12 and IP66 enclosure means the switch body withstands hose-directed water and dust ingress — suitable for washdown zones in food processing, outdoor material handling, or wet machining areas. The ZAMAK zinc alloy body resists corrosion in those environments.

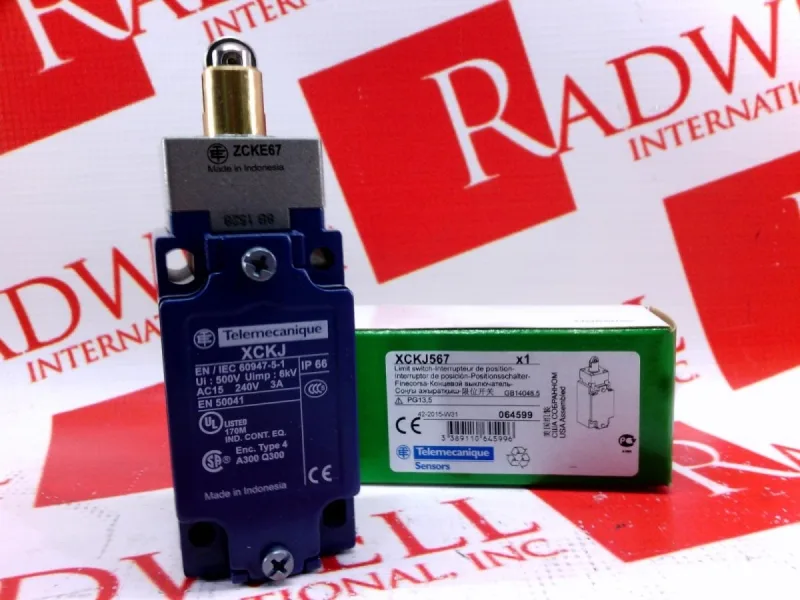

Square D XCKJ567 Heavy Duty Limit Switch, 240VAC 10A, IP66
MPNXCKJ567
Square D / Telemecanique Osiswitch XCKJ567 heavy duty limit switch, non-plug-in, SPDT slow make/break, 240VAC 10A / 250VDC 0.27A, steel top roller plunger, NEMA 1/2/4/12 IP66, UL/CSA.
$29.21Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | HEAVY DUTY, NON PLUG IN |
| Operation type | SPRING RETURN |
| Connection type | PG13.5 CABLE GLAND/SCREW CLAMP TERMINAL |
| Actuator (Head type) | STEEL TOP ROLLER PLUNGER HEAD |
| Contact configuration | SPDT SLOW MAKE/BREAK |
| Enclosure | NEMA 1/2/4/12, IP66 |
| Operating temperature | -13 TO 158 DEG F |
| Body material | ZAMAK[R] ZINC ALLOY |
| Approval | UL, CSA |
| Model | XCKJ |
| Category | Heavy Duty Limit Switches |
| Pretravel | 3.2 MM |
All specifications
| Parameter | Value |
|---|---|
| Sub-Category | General/Heavy Duty Limit Switch |
| Total travel | 5.3 MM |
| Contact rating | 240 VAC 10 AMPERE, 250 VDC 0.27 AMPERE |
| Operating force | 48 OZ |
| Manufacturer brand | Square D Co. |
| Product description | Telemecanique XCKJ567 Limit Switch 240Vac 10Amp Xckj +Options |
| Additional information | APPLICABLE STANDARD EN/IEC 60204-1, EN/IEC 60947-5-1 |
| Full technical description | Heavy Duty, Non Plug in Type; SPDT Slow Make/Break Contact Configuration; PG13.5 Cable Gland/Screw Clamp Terminal Connection Type; Spring Return Operation Type; 240 VAC 10 Ampere, 250 VDC 0.27 Ampere Contact Rating; UL, CSA Approval; NEMA 1/2/4/12, IP66 Enclosure; ZAMAK[R] Zinc Alloy Body Material; -13 to 158 Deg F Operating Temperature; 48 oz Operating Force; Steel Top Roller Plunger Head Actuator/Head Type; 3.2 mm Pretravel; 5.3 mm Total Travel; OSISWITCH[R] Brand; Applicable Standard En/Iec 60204-1, En/Iec 60947-5-1; XCKJ Model |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product details
Frequently asked questions
What approvals does XCKJ567 carry?
It carries UL and CSA approvals, plus compliance with EN/IEC 60204-1 and EN/IEC 60947-5-1 standards for industrial machinery safety and control circuit devices.
What is the enclosure rating and where can it be used?
The enclosure is rated NEMA 1/2/4/12 and IP66, meaning it is dust-tight and protected against hose-directed water. Suitable for washdown environments, outdoor use, and general industrial locations where liquid ingress is a concern.
What is the contact configuration and rating?
SPDT slow make/break contacts rated 240 VAC 10 A and 250 VDC 0.27 A. The slow make/break action minimizes contact bounce for reliable signal switching on control circuits.
