Schneider Electric XCKM102H7 — Limit Switches

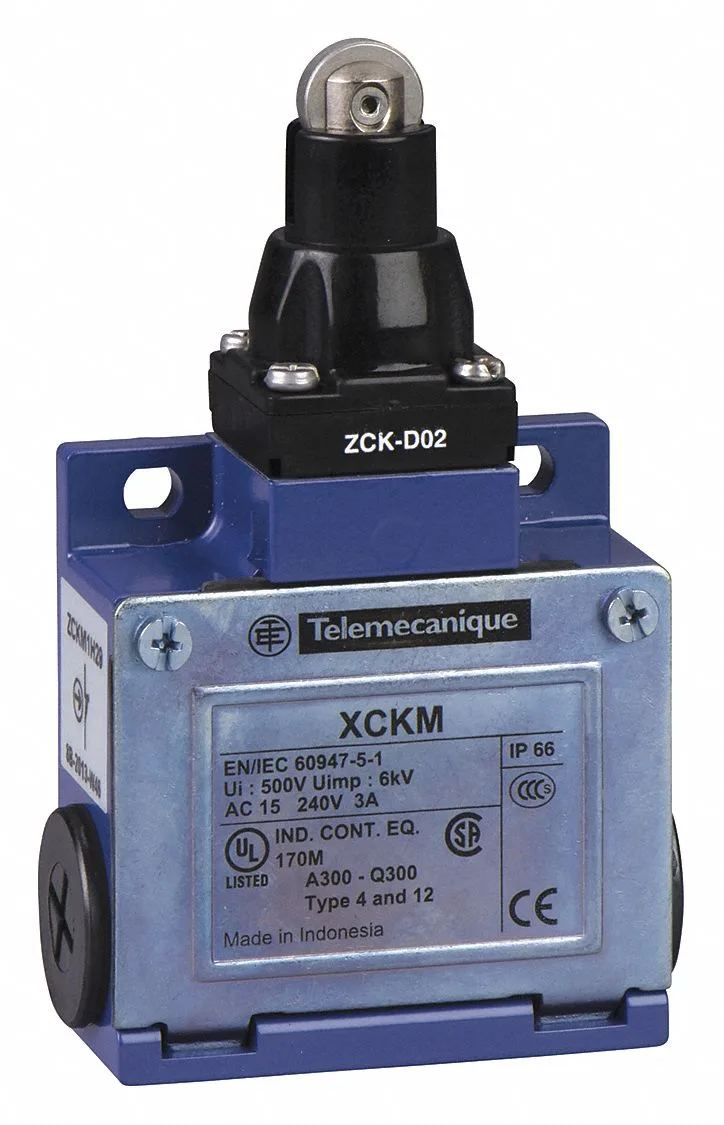

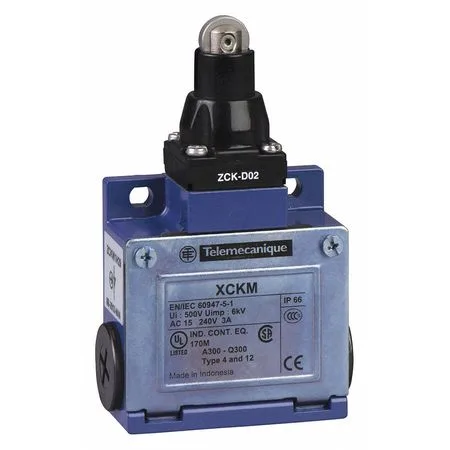

Square D XCKM102H7 Limit Switch, Roller Plunger, IP66

MPNXCKM102H7

Square D XCKM series, limit switch, roller plunger actuator, 1NO/1NC, IP66, CE, CSA, UL Listed.

$36.83Ref. price · indicative, final on quote
Schneider Electric XCKM102H7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XCKM102H7 key specifications
ParameterValue
SeriesXCKM
ActuationRoller Plunger
Body material typeNon-Metallic
Contact form1NO/1NC
IP ratingIP66
NEMA enclosure rating1; 2; 4; 12; 13
Mounting styleSurface
Number of mounting holes2
Mounting hole diameter - NEW0.2 in
Mounting hole horizontal center to center distance41 mm
Electrical connectionScrew Clamp Terminals
Operating temperature - maximum158 °F

All specifications

XCKM102H7 additional specifications
ParameterValue
Operating temperature - minimum-13 °F
Body depth1.18 in
Body width2.52 in
Body height4.25 in
Body materialZamak
Overall depth1.18 in
Overall width2.52 in
Overall height2.52 in
StandardsCE; CSA; UL Listed
Display qty1
Actuator styleRoller Plunger
Actuator length1.71 in
Display sell UOMEA
AC contact rating3 A @ 240 V
Actuator locationTop
DC contact rating0.27 A @ 250 V
Boot sealed actuatorNo Boot Included
Directional movementLinear
Resistance propertiesShock Resistant; Vibration Resistant
Operating force - maximum12 N
Operating torque - maximum2.7 in-lb

Product details

Limit switch for washdown and industrial positioning

The Square D XCKM102H7 is a limit switch from the XCKM series, fitted with a roller plunger actuator for linear cam or slide detection. The 1NO/1NC contact block gives you one normally-open and one normally-closed set, which is the standard arrangement for interlocking a guard door or signaling a position change while maintaining a closed-loop feedback path. Rated for 3 A at 240 V AC and 0.27 A at 250 V DC, it handles pilot-duty control circuits on conveyors, packaging machines, and material-handling lines. The Zamak body and NEMA ratings 1, 2, 4, 12, and 13 confirm it holds up in industrial atmospheres with oil, coolant mist, and non-corrosive liquids.

Surface-mount the switch using two 0.2-inch mounting holes on a 41 mm horizontal center-to-center spacing. No boot is included, so if the application requires a sealed actuator boot, order one separately. The operating range spans -13 °F to 158 °F, covering most indoor and sheltered outdoor installations.

Frequently asked questions

What approvals does the XCKM102H7 carry?

It is CE marked, CSA certified, and UL Listed. These cover the major North American and European regulatory requirements for industrial control equipment.

What is the IP rating and what does it mean for installation?

IP66 means the switch is dust-tight and protected against powerful water jets. It is suitable for washdown environments, outdoor use, and areas where hosing down equipment is routine.

What is the contact configuration and rating?

The switch has one normally-open and one normally-closed contact (1NO/1NC). The AC contact rating is 3 A at 240 V; the DC contact rating is 0.27 A at 250 V.
