Schneider Electric XCKM121H29

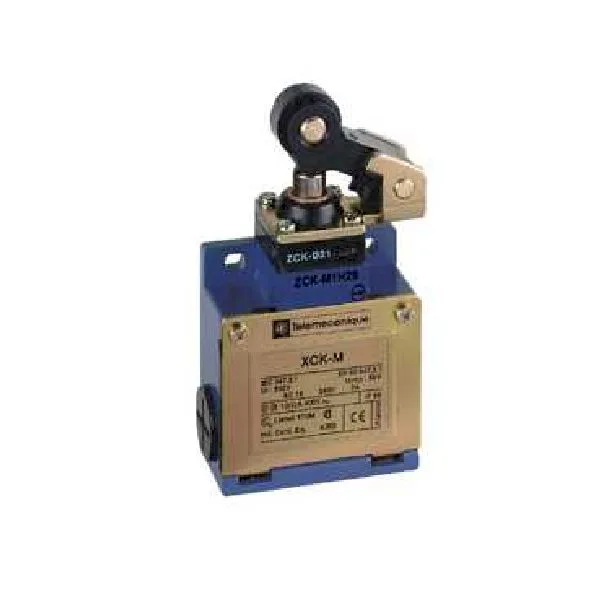

Square D XCKM121H29 Limit Switch, 1NO-1NC, IP66

MPN XCKM121H29

Square D Telemecanique Osiswitch XCKM121H29, General Duty Compact Limit Switch, 1NO-1NC, 240 VAC 3 A / 250 VDC 0.27 A, NEMA 1/2/4/6/6P/12/13 IP66, ISO M20 x 1.5 cable gland, thermoplastic roller lever plunger.

$26.67 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

XCKM121H29 specifications
ParameterValue
Product typeCOMPACT, GENERAL DUTY
Operation typeSnap Action, Spring Return
Actuator head typeThermoplastic Roller Lever Plunger
Temp operating max158 °C
Temp operating min-13 °C
Pretravel4.6 MM
Differential travel2.2 MM

Product details

The Square D Telemecanique XCKM121H29 is a general-duty compact limit switch from the Osiswitch family, built with a ZAMAK zinc alloy body and a thermoplastic roller lever plunger actuator. The 1NO-1NC contact block is rated 240 VAC at 3 A and 250 VDC at 0.27 A — the DC rating is the one to watch for inductive loads like small solenoids or DC relays, where the 0.27 A ceiling governs the actual switching capacity, not the higher AC figure. The snap-action, spring-return mechanism gives a defined pretravel of 4.6 mm and differential travel of 2.2 mm, so the switch makes and breaks cleanly at a repeatable position.

Where it fits — enclosure and connection

The enclosure carries NEMA 1/2/4/6/6P/12/13 and IP66 ratings, meaning it seals against hose-directed water and submersion to a limited depth — suitable for washdown zones in food processing or outdoor conveyor lines. The ISO M20 x 1.5 cable gland entry accepts standard metric conduit fittings; the screw-clamp terminals inside accept solid or stranded wire without ferrules.

MPN
XCKM121H29
