Schneider Electric XCKML102 — Limit Switches

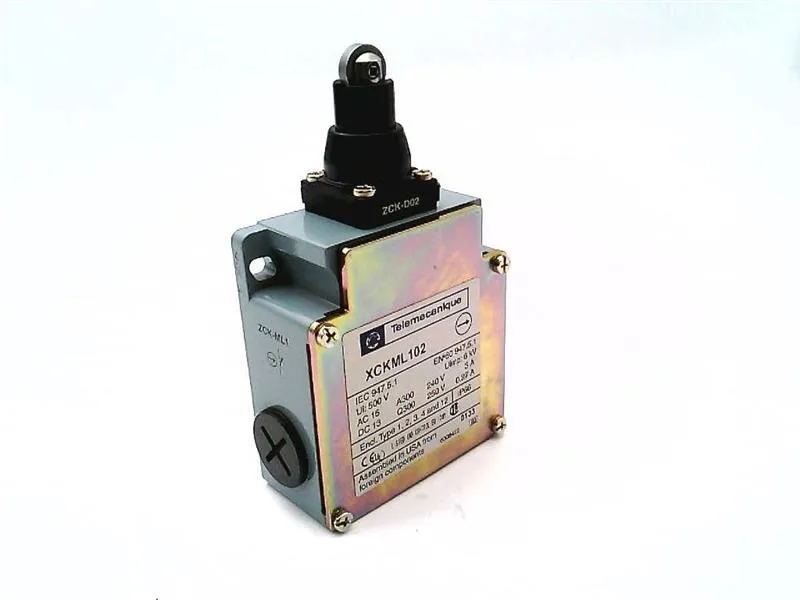

Schneider XCKML102 Limit Switch, SPDT 2NO-2NC, IP66

MPNXCKML102

Schneider Electric Osiswitch XCKML102 general duty compact limit switch, SPDT 2NO-2NC double break, 240VAC 3A / 250VDC 0.27A, IP66 NEMA 4/6/12/13, steel roller plunger actuator, 13mm cable gland entry.

$52.07Ref. price · indicative, final on quote
Schneider Electric XCKML102 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XCKML102 key specifications
ParameterValue
TypeGENERAL DUTY, COMPACT
Operation typeMOMENTARY, SNAP ACTION
Connection type13 MM CABLE GLAND/SCREW CLAMP TERMINAL
Actuator (Head type)STEEL ROLLER PLUNGER
Contact configurationSPDT, 2NO-2NC DOUBLE BREAK
EnclosureNEMA 1/2/4/6/6P/12/13, IP66
Operating temperature-13 TO 158 DEG F
Body materialZAMAK[R] ZINC ALLOY
ApprovalUL, CSA
ModelXCKML
CategoryGeneral Duty Limit Switches
Pretravel4 MM

All specifications

XCKML102 additional specifications
ParameterValue
Sub-CategoryGeneral/Heavy Duty Limit Switch
Contact rating240 VAC 3 AMPERE, 250 VDC 0.27 AMPERE
Operating force50 OZ-INCH
Manufacturer brandSquare D Co.
Differential travel2 MM
Product descriptionTelemecanique XCKML102 Limit Switch 240Vac 10Amp Xck +Options
Additional informationAPPLICABLE STANDARD EN/IEC 60204-1, EN/IEC 60947-5-1
Full technical descriptionGeneral Duty, Compact Type; SPDT, 2NO-2NC Double Break Contact Configuration; 13 mm Cable Gland/Screw Clamp Terminal Connection Type; Momentary, Snap Action Operation Type; 240 VAC 3 Ampere, 250 VDC 0.27 Ampere Contact Rating; UL, CSA Approval; NEMA 1/2/4/6/6P/12/13, IP66 Enclosure; ZAMAK[R] Zinc Alloy Body Material; -13 to 158 Deg F Operating Temperature; 50 oz-Inch Operating Force; 2 mm Differential Travel; Steel Roller Plunger Actuator/Head Type; 4 mm Pretravel; OSISWITCH[R] Brand; Applicable Standard En/Iec 60204-1, En/Iec 60947-5-1; XCKML Model
Proposition 65 warningWARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product details

Compact general-duty limit switch with IP66 sealing

The XCKML102 is a general duty compact limit switch from the Schneider Electric Osiswitch line, built for position sensing on industrial machinery, conveyors, and automated gates where space is tight but sealing matters. The ZAMAK zinc alloy body and NEMA 1/2/4/6/6P/12/13 / IP66 enclosure mean it handles washdown, dust, and temporary submersion — suitable for food processing, packaging lines, and outdoor material handling without an additional protective cover.

Contact rating split — AC vs DC matters

Rated 240 VAC at 3 A and 250 VDC at 0.27 A — the DC rating is an order of magnitude lower because DC arcs sustain longer. For a 24 VDC PLC input circuit the 0.27 A ceiling is generous, but switching a solenoid or brake at 125 VDC needs the actual load current checked against that 0.27 A limit. The SPDT 2NO-2NC double-break contact configuration gives both normally-open and normally-closed poles in one switch body, so a single unit can signal a position change and also interrupt a safety circuit or interlock.

Steel roller plunger actuator — cam-following duty

The steel roller plunger actuator with 4 mm pretravel and 2 mm differential travel is designed for cam-driven or linear-slide actuation — the roller reduces side-load wear on the plunger compared to a plain pin plunger, extending mechanical life in high-cycle applications.

Wiring and standards compliance

Termination is via a 13 mm cable gland with screw-clamp terminals inside — the gland accepts standard metric conduit or cable, and the screw clamps handle solid or stranded wire up to roughly 14 AWG without ferrules. Meets EN/IEC 60204-1 (machine safety — electrical equipment) and EN/IEC 60947-5-1 (control circuit devices — switching elements), with UL and CSA approvals for North American panel builds.

Sourcing and lifecycle

Sourced through independent distribution channels; quoted to order against the BOM quantity with availability confirmed at RFQ time.

Frequently asked questions

What is the XCKML102 enclosure rating and what does it mean for installation?

The XCKML102 carries NEMA 1/2/4/6/6P/12/13 and IP66 ratings. This means it is dust-tight, protected against hose-directed water and temporary submersion (NEMA 6P), and suitable for indoor or outdoor use in wet, dusty, or corrosive environments without a secondary enclosure.

What is the difference between the AC and DC contact ratings on the XCKML102?

The AC rating is 240 VAC at 3 A, while the DC rating is 250 VDC at only 0.27 A. DC arcs do not self-extinguish at voltage zero-crossing, so the switch must break the arc mechanically — this limits DC current to roughly one-tenth of the AC capability. For DC applications, verify the load current stays under 0.27 A at the operating voltage.

MPN
XCKML102
