Schneider Electric XCKML115 — Limit Switches

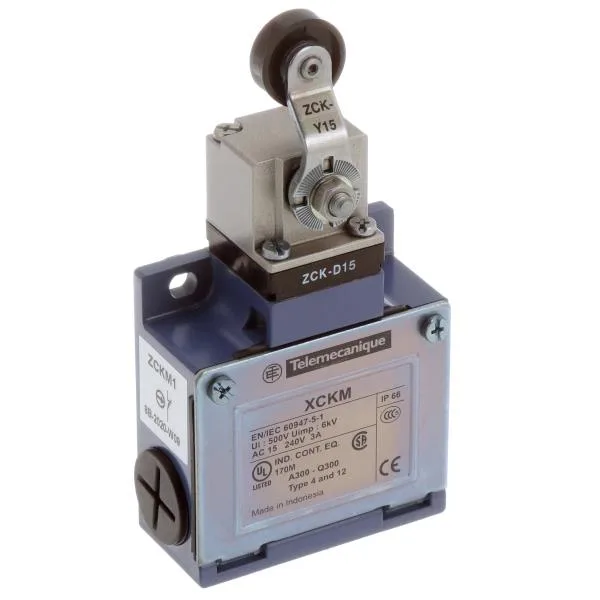

Square D XCKML115 Limit Switch, SPDT, 3A 240VAC

MPNXCKML115

Square D XCKML115 General Duty Limit Switch, SPDT 1NO-1NC Double Break, 240 VAC 3 A / 250 VDC 0.27 A, NEMA 1/2/4/6/6P/12/13 IP66, ZAMAK zinc alloy body, thermoplastic roller lever actuator.

$49.53Ref. price · indicative, final on quote
Schneider Electric XCKML115 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XCKML115 key specifications
ParameterValue
TypeGENERAL DUTY, COMPACT
Operation typeCLOCKWISE/COUNTER CLOCKWISE, MOMENTARY, SNAP ACTION
Connection type13 MM CABLE GLAND/SCREW CLAMP TERMINAL
Actuator (Head type)THERMOPLASTIC ROLLER LEVER
Contact configurationSPDT, 1NO-1NC DOUBLE BREAK
EnclosureNEMA 1/2/4/6/6P/12/13, IP66
Operating temperature-13 TO 158 DEG F
Body materialZAMAK[R] ZINC ALLOY
ApprovalUL, CSA
ModelXCKML
CategoryGeneral Duty Limit Switches
Pretravel25 MM

All specifications

XCKML115 additional specifications
ParameterValue
Sub-CategoryGeneral/Heavy Duty Limit Switch
Total travel70 MM
Contact rating240 VAC 3 AMPERE, 250 VDC 0.27 AMPERE
Operating force70.8 OZ-INCH
Manufacturer brandSquare D Co.
Differential travel14 MM
Product descriptionTelemecanique XCKML115 Limit Switch 240Vac 10Amp Xck +Options
Additional informationAPPLICABLE STANDARD EN/IEC 60204-1, EN/IEC 60947-5-1
Full technical descriptionGeneral Duty, Compact Type; SPDT, 1NO-1NC Double Break Contact Configuration; 13 mm Cable Gland/Screw Clamp Terminal Connection Type; Clockwise/Counter Clockwise, Momentary, Snap Action Operation Type; 240 VAC 3 Ampere, 250 VDC 0.27 Ampere Contact Rating; UL, CSA Approval; NEMA 1/2/4/6/6P/12/13, IP66 Enclosure; ZAMAK[R] Zinc Alloy Body Material; -13 to 158 Deg F Operating Temperature; 70.8 oz-Inch Operating Force; 14 mm Differential Travel; Thermoplastic Roller Lever Actuator/Head Type; 25 mm Pretravel; 70 mm Total Travel; OSISWITCH[R] Brand; Applicable Standard En/Iec 60204-1, En/Iec 60947-5-1; XCKML Model
Proposition 65 warningWARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product details

The Square D XCKML115 is a general duty limit switch with a thermoplastic roller lever actuator. Its SPDT double-break contacts are rated 3 A at 240 VAC and 0.27 A at 250 VDC, sufficient for most control circuit isolation in compact enclosures. Enclosure rated NEMA 1/2/4/6/6P/12/13 and IP66 means it handles washdown, temporary submersion, and dusty environments without a separate guard.

Mounting & Wiring Notes

13 mm cable gland entry with screw clamp terminals. Pretravel 25 mm, differential travel 14 mm, total travel 70 mm; operating force 70.8 oz-in. Body ZAMAK zinc alloy, thermoplastic roller lever.

Frequently asked questions

What is the type and enclosure rating?

Type is GENERAL DUTY, COMPACT. Enclosure is NEMA 1/2/4/6/6P/12/13 and IP66.

MPN
XCKML115
