Schneider Electric XCKMR54D1 — Limit Switches

Telemecanique XCKMR54D1 Limit Switch, 240VAC 3A

MPNXCKMR54D1

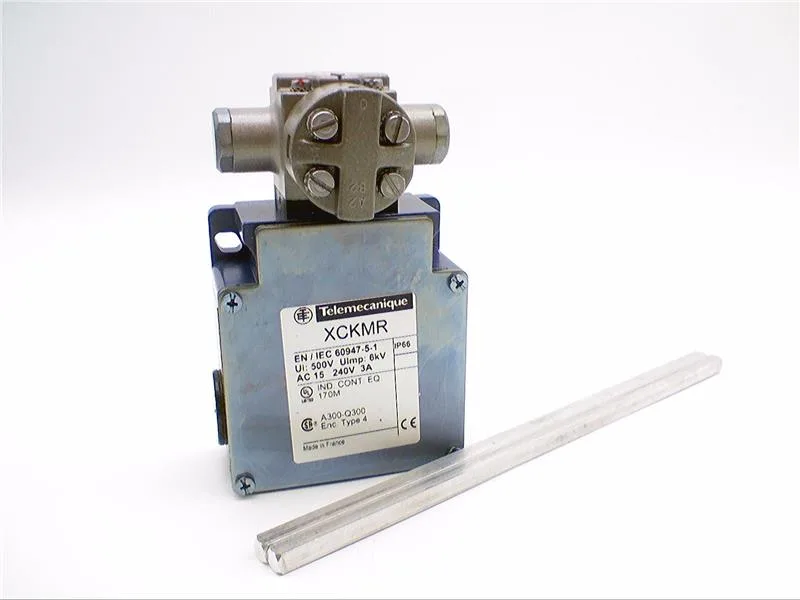

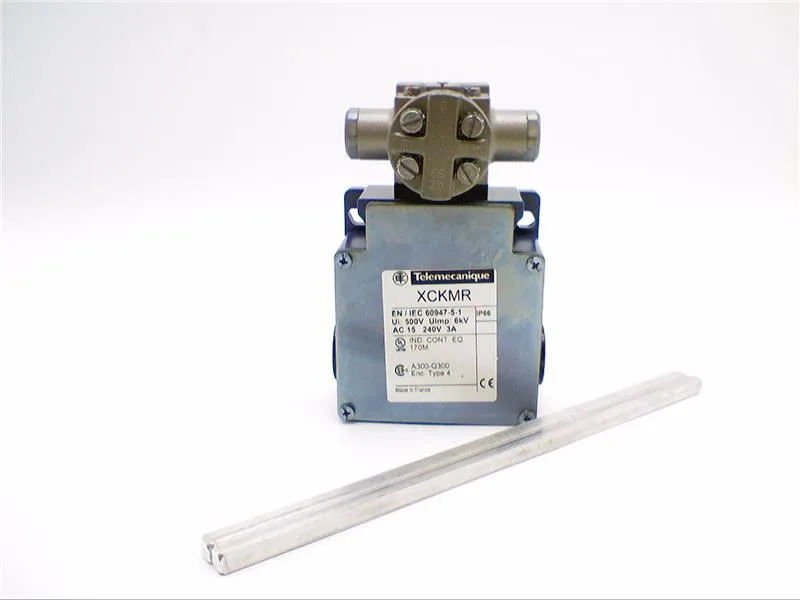

Telemecanique XCKMR54D1 General Duty Compact Limit Switch, 4NC, 240VAC 3A / 250VDC 0.27A, Metal Body, PG13.5 Gland, Square Rod Crossed Rotary Lever.

$115.57Ref. price · indicative, final on quote
Schneider Electric XCKMR54D1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XCKMR54D1 specifications
ParameterValue
TypeGeneral Duty, Compact
Connection typePG13.5 Cable Gland/Screw Clamp Terminal
Actuator (Head type)Square Rod Crossed Rotary Lever
Contact configuration4NC Slow Make/Break
Operating temperature-25 to 70 Deg C
Body materialMetal
ApprovalUL 508, CSA C22.2, CE
ModelXCKMR
CategoryGeneral Duty Limit Switches
Sub-CategoryGeneral/Heavy Duty Limit Switch
Contact rating240 VAC 3 Ampere, 250 VDC 0.27 Ampere
Operating force0.5 N-M
Manufacturer brandSquare D Co.
Product descriptionTelemecanique XCKMR54D1 Limit Switch 240Vac 10Amp Xck +Options
Additional informationApplicable Standard EN/IEC 60204-1, EN/IEC 60947-5-1
Full technical descriptionGeneral Duty, Compact Type; 4NC Slow Make/Break Contact Configuration; PG13.5 Cable Gland/Screw Clamp Terminal Connection Type; 240 VAC 3 Ampere, 250 VDC 0.27 Ampere Contact Rating; UL 508, CSA C22.2, CE Approval; Metal Body Material; -25 to 70 Deg C Operating Temperature; 0.5 N-M Operating Force; Square Rod Crossed Rotary Lever Actuator/Head Type; Osisense Brand; Applicable Standard En/Iec 60204-1, En/Iec 60947-5-1; XCKMR Model
Proposition 65 warningWARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product details

The XCKMR54D1 is a general duty compact limit switch from the Telemecanique Osiswitch series, with a metal body and a square rod crossed rotary lever actuator. It carries a 4NC slow make/break contact configuration rated 240 VAC 3 A and 250 VDC 0.27 A, terminated via a PG13.5 cable gland with screw clamp terminals. Approvals include UL 508, CSA C22.2, and CE, with compliance to EN/IEC 60204-1 and EN/IEC 60947-5-1.

The DC contact rating at 250 VDC 0.27 A is the typical constraint for this class of limit switch — expect to derate significantly when switching DC control circuits. The 240 VAC 3 A rating covers most AC pilot-duty loads up to that current. The 0.5 N-m operating force and the square-rod rotary lever suit light-to-medium cam or dog actuation in conveyors, packaging, and material handling. The metal body and PG13.5 gland make it a straightforward fit for NEMA 1 or IP54 enclosures where corrosion resistance is not the primary concern.
