Schneider Electric XCKMR54D1H29

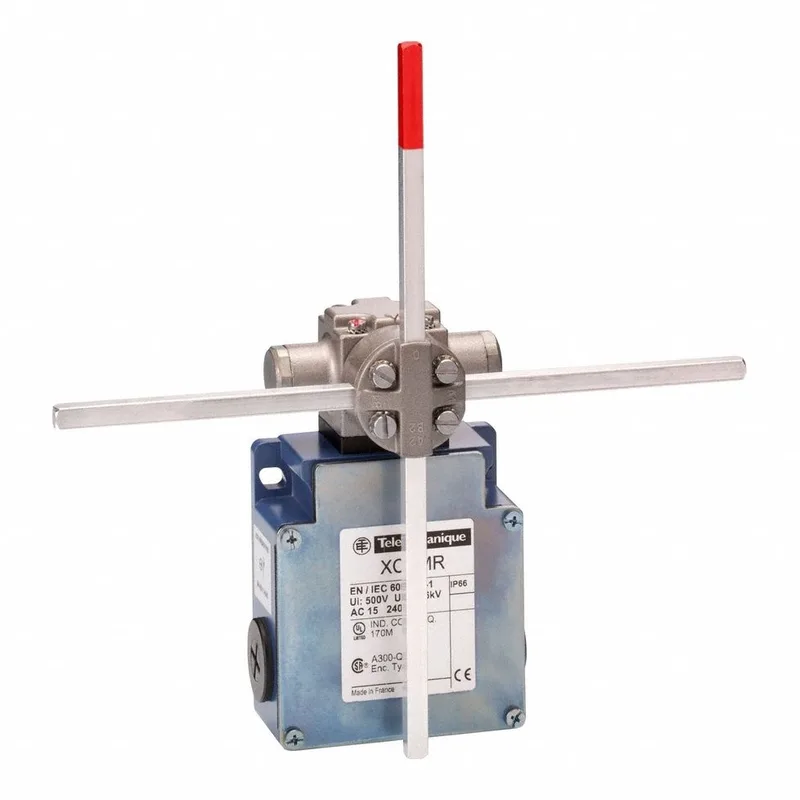

Telemecanique XCKMR54D1H29 Limit Switch, 4NC, IP66

MPN XCKMR54D1H29

Telemecanique Osiswitch XCKMR54D1H29, general duty compact limit switch, 4NC slow make/break contacts, 240VAC 3A / 250VDC 0.27A, IP66/NEMA 6P metal enclosure, square rod crossed rotary lever.

$115.57 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

XCKMR54D1H29 specifications
ParameterValue
Product typeCOMPACT, GENERAL DUTY
Temp operating max70 °C
Temp operating min-25 °C

Product details

The Telemecanique XCKMR54D1H29 is a general duty compact limit switch with a metal body and IP66 / NEMA 1/2/4/6/6P/12/13 enclosure. Its 4NC slow make/break contact configuration means all four contacts are normally closed – they open only when the actuator is operated. That's a fit check for circuits that need a closed-loop status on idle, like safety interlocks or position monitoring. Contact ratings are 240 VAC 3 A and 250 VDC 0.27 A, so it's for control-level signals, not power switching. Operating force is 0.5 N-m, and the crossed rotary lever (square rod) gives a defined snap action on approach from multiple angles.

Connection is via an ISO M20 x 1.5 cable gland and screw clamp terminals. Strip the cable, land the wires, torque to spec. The metal body grounds through the mounting screws – no separate earth terminal on the switch. The 4NC contacts are all the same: slow make/break, rated for the listed AC/DC loads. If your circuit expects normally open, you'll need a different head or switch model.

MPN
XCKMR54D1H29
