Schneider Electric XCKN2108P20
MPNXCKN2108P20

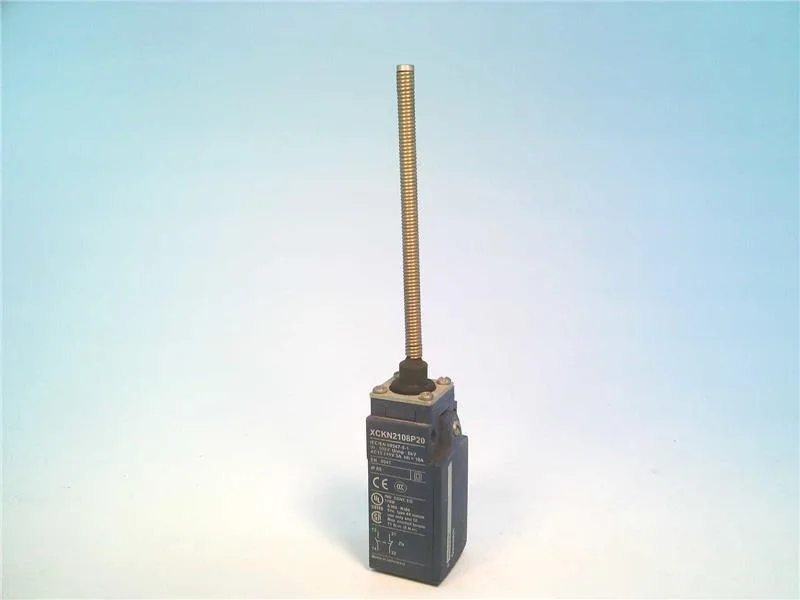

SQUARE D XCKN2108P20: LIMIT SWITCH
$5.49Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Compact, Non-Modular |
| Operation type | Spring Return, Snap Action |
| Connection type | M20 x 1.5 Meter Pre-Wired Cable |
| Actuator (Head type) | Spring Rod Lever Nitrile Boot |
| Contact configuration | 1NO-1NC |
| Enclosure | NEMA 4X/12, IP65 |
| Operating temperature | -13 to 158 Deg F |
| Body material | Plastic |
| Approval | UL 508, CSA C22.2, CE, CCC |
| Category | Severe Duty Limit Switches |
| Manufacturer | Square D Co. |
| Sub-Category | General/Heavy Duty Limit Switch |
| Contact rating | 240 VAC 3 Ampere, 250 VDC 0.1 Ampere |
| Operating force | 0.13 N (Tripping) |
| Manufacturer brand | Square D Co. |
| Product description | Telemecanique XCKN2108P20 Limit Switch |
| Additional information | RoHS Compliant; Overall Dimension 1.18 Inch W x 1.75 Inch D x 4.25 Inch H; Number of Poles 2; Actuation Speed 1 Meter/Sec; Applicable Standard EN/IEC 60947-5-1, EN/IEC 60204-1 |
| Full technical description | Compact, Non-Modular Type; 1NO-1NC Contact Configuration; M20 X 1.5 Meter Pre-Wired Cable Connection Type; Spring Return, Snap Action Operation Type; 240 VAC 3 Ampere, 250 VDC 0.1 Ampere Contact Rating; UL 508, CSA C22.2, CE, CCC Approval; NEMA 4X/12, IP65 Enclosure; Plastic Body Material; -13 to 158 Deg F Operating Temperature; 0.13 N (Tripping) Operating Force; Spring Rod Lever Nitrile Boot Actuator/Head Type; OSISENSE[R] Brand; RoHS Compliant; Overall Dimension 1.18 Inch W X 1.75 Inch D X 4.25 Inch H; Number of Poles 2; Actuation Speed 1 Meter/Sec; Applicable Standard En/Iec 60947-5-1, En/Iec 60204-1 |
MPN
XCKN2108P20
