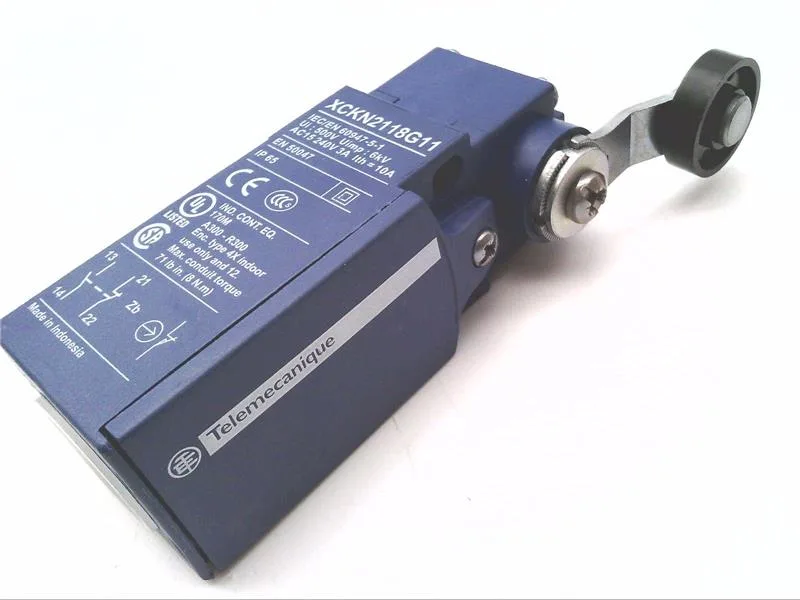

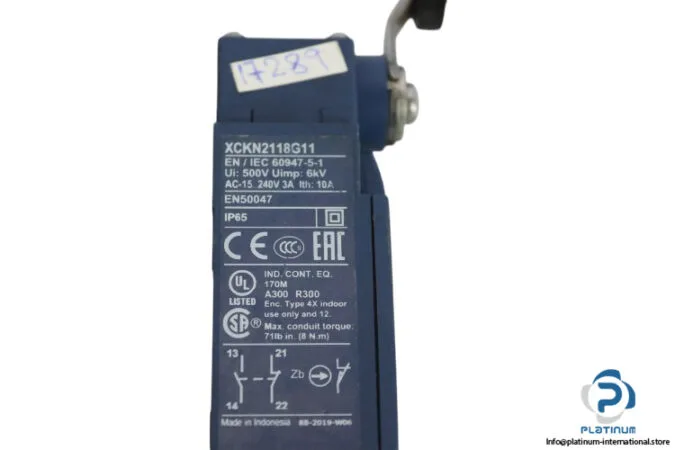

Schneider Electric XCKN2118G11
MPNXCKN2118G11
TELEMECANIQUE XCKN2118G11 LIMIT SWITCH
$4.15Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Limit Switch |
| Actuation | Thermoplastic Roller Lever |
| Type of product | Limit Switch |
| Switching voltage AC-15 | 240 V |
| Rated impulse voltage | 6 kV |
| Voltage | 500 V |
| Contact current AC-15 | 3 A |
| Thermal current | 10 A |
| Mounting dimensions | 19 x 20 x 51 mm |
| Connection | Screw-clamp terminals Pg11 |
| Ambient operating temperature | -25 to 70 °C |
| Weight | 0,09 kg |
All specifications+9 ▾
| Parameter | Value |
|---|---|
| Dimensions | 30 x 44.5 x 108 mm |
| Standards | EN / IEC 60947-5-1 , EN50047 |
| Model | XCKN2118G11 |
| Condition | Used |
| Shelf no. | 250120 |
| Manufacturer | Telemecanique |
| IP rating | IP65 |
| Contact operation | Snap Action |
| Output configuration | 1 Normally Open + 1 Normally Closed |
MPN
XCKN2118G11
