Schneider Electric XCKP2102N12 — Limit Switches

Schneider Electric XCKP2102N12 Compact Limit Switch, 10 A

MPNXCKP2102N12

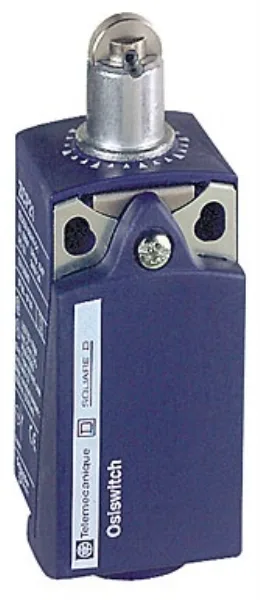

Schneider Electric Osiswitch XCKP2102N12 compact limit switch, plastic body, snap action, 1NO-1NC, 240 VAC 10 A / 250 VDC 0.27 A, 1/2 inch NPT conduit, steel top roller plunger, IP66/IP67.

$15.24Ref. price · indicative, final on quote
Schneider Electric XCKP2102N12 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XCKP2102N12 key specifications
ParameterValue
TypeCompact
Operation typeSnap Action
Connection type1/2 Inch NPT Conduit/Screw Clamp Terminal
Actuator (Head type)Steel Top Roller Plunger
Contact configuration1NO-1NC
EnclosureNEMA 1/2/4/6/6P/12/13, IP66, IP67
Operating temperature-13 to 158 Deg F
Body materialPlastic
ApprovalUL, CSA
ModelXCKP
CategoryGeneral Duty Limit Switches
Pretravel3.1 MM

All specifications

XCKP2102N12 additional specifications
ParameterValue
Sub-CategoryGeneral/Heavy Duty Limit Switch
Contact rating240 VAC 10 Ampere, 250 VDC 0.27 Ampere
Operating force318 Lb-Inch
Manufacturer brandSquare D Co.
Differential travel1.5 MM
Product descriptionTelemecanique XCKP2102N12 Limit Switch 240Vac 10A Plastic Xckp
Additional informationApplicable Standard EN/IEC 60204-1, EN/IEC 60947-5-1
Full technical descriptionCompact Type; 1NO-1NC Contact Configuration; 1/2 Inch NPT Conduit/Screw Clamp Terminal Connection Type; Snap Action Operation Type; 240 VAC 10 Ampere, 250 VDC 0.27 Ampere Contact Rating; UL, CSA Approval; NEMA 1/2/4/6/6P/12/13, IP66, IP67 Enclosure; Plastic Body Material; -13 to 158 Deg F Operating Temperature; 318 lb-Inch Operating Force; 1.5 mm Differential Travel; Steel Top Roller Plunger Actuator/Head Type; 3.1 mm Pretravel; Osisense Brand; Applicable Standard En/Iec 60204-1, En/Iec 60947-5-1; XCKP Model
Proposition 65 warningWARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product details

Compact form, plastic body, 1/2 inch NPT entry

The Schneider Electric Osiswitch XCKP2102N12 is a compact-body limit switch built around a plastic housing with a 1/2 inch NPT conduit entry and screw-clamp terminals — small enough to drop onto a guard door or a conveyor idler without a metal-bodied footprint, but with the same snap-action contact block carried by the larger XCKP/XCKT family. It ships as a single-pole, snap-action device with 1NO-1NC contact configuration rated 240 VAC at 10 A and 250 VDC at 0.27 A — the standard Osiswitch block that drops into machine-tool and packaging-line wiring without a special relay interface.

Sealed for washdown and outdoor cabinet doors

The enclosure is rated NEMA 1, 2, 4, 6, 6P, 12 and 13 alongside IP66 and IP67, which means the body and the cable entry survive hosed-down food-and-bev lines as well as outdoor cabinet doors where driving rain and dust are routine. Operating temperature runs from -13 to 158 degrees F — adequate for unheated warehouse cells in winter and most process-area panels in summer, though it is not a freezer-rated or furnace-rated device.

Standards and approvals on record

The switch carries UL and CSA approvals and is designed to EN/IEC 60204-1 and EN/IEC 60947-5-1 — the latter being the product standard that defines limit-switch ratings, contact reliability, and the test methods a machine builder's declaration of conformity expects to see cited.

MPN
XCKP2102N12
