Schneider Electric XCKP2118M12 — Limit Switches

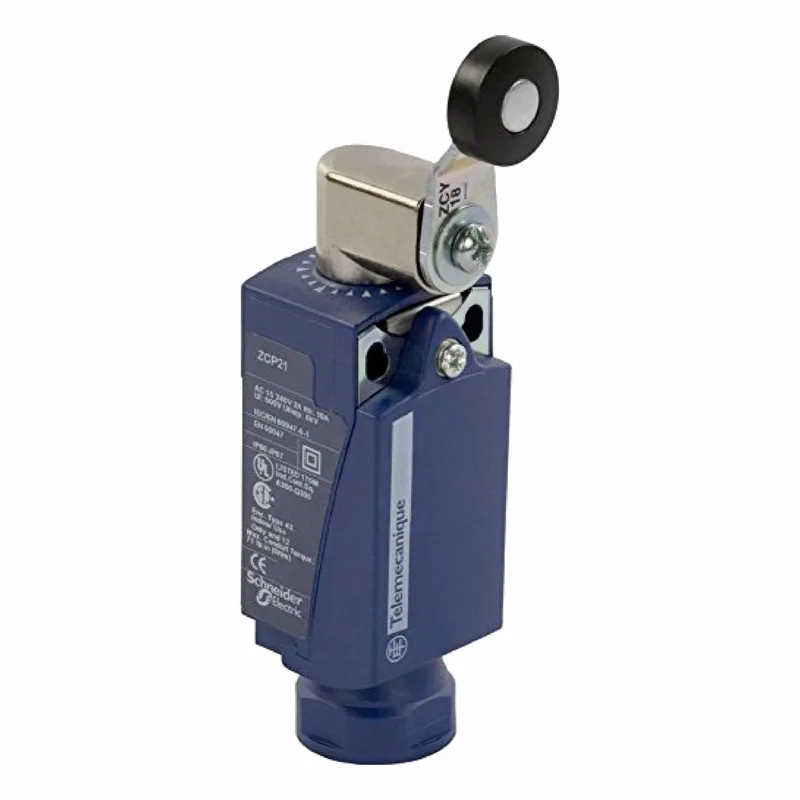

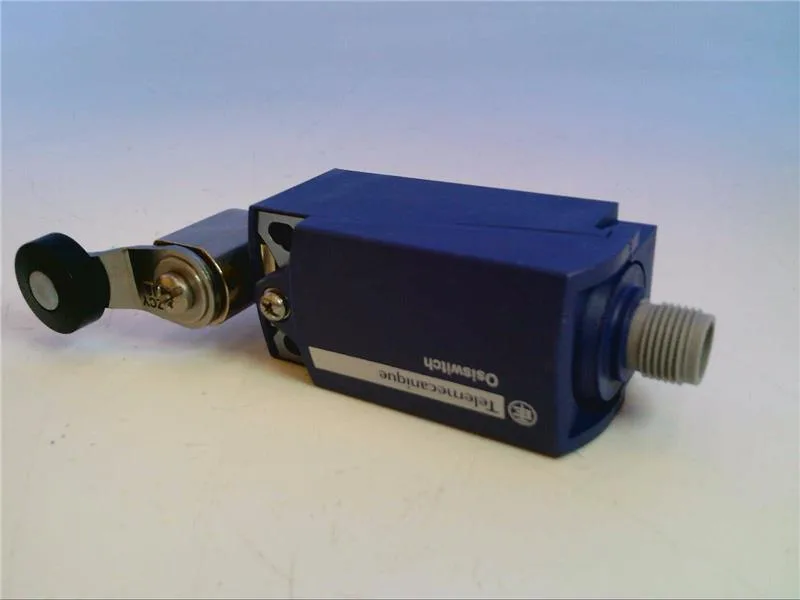

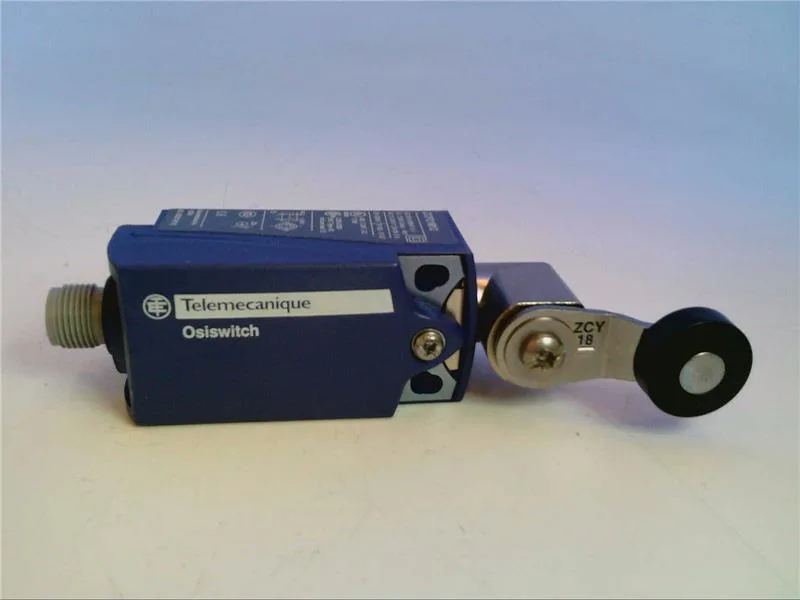

Telemecanique XCKP2118M12 Limit Switch, Roller Lever, IP66/I

MPNXCKP2118M12

Telemecanique Sensors XCKP series limit switch, XCKP2118M12, roller lever actuator, 1NO/1NC contacts, 3 A @ 240 VAC/DC, IP66/IP67, M12 connector.

$17.78Ref. price · indicative, final on quote
Schneider Electric XCKP2118M12 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XCKP2118M12 key specifications
ParameterValue
SeriesXCKP
ActuationRoller Lever
Contact form1NO/1NC
IP ratingIP66; IP67
NEMA enclosure rating1; 2; 4; 6; 12; 13
Mounting styleSurface
Mounting hole diameter0.17 in
Number of mounting holes2
Mounting hole horizontal center to center distance19 mm
Electrical connection4-Pin M12 Connector
Operating temperature - maximum158 °F
Operating temperature - minimum-13 °F

All specifications

XCKP2118M12 additional specifications
ParameterValue
Body depth1.18 in
Body width1.22 in
Body height2.56 in
Arm materialMetal
Roller width0.22 in
Body materialPlastic
Overall depth1.18 in
Overall width1.22 in
Overall height2.56 in
Roller materialThermoplastic
StandardsCE; CSA; UL Listed
Actuator styleRoller Lever Plunger
Actuator length1.3 in
Roller diameter0.75 in
AC contact rating3 A @ 240 V
Actuator locationSide
DC contact rating3 A @ 240 V
Boot sealed actuatorNo Boot Included
Directional movementCCW/CW
Resistance propertiesShock Resistant; Vibration Resistant
Operating torque - maximum0.9 in-lb

Product details

The Telemecanique XCKP2118M12 is a compact limit switch from the XCKP series, fitted with a side-mounted roller lever actuator. It carries a 1NO/1NC contact block rated 3 A at 240 V for both AC and DC circuits. The M12 4-pin connector simplifies field wiring and replacement.

Ratings and deployment

Rated IP66 and IP67, the switch is sealed against hose-directed water and temporary immersion — suitable for washdown zones in food processing or outdoor conveyor lines. NEMA ratings 1, 2, 4, 6, 12, 13 confirm equivalent enclosure protection for dust, rain, and oil mist. The metal arm and thermoplastic roller hold up in high-cycle applications; maximum operating torque is 0.9 in-lb. Operating temperature spans -13 °F to 158 °F.

The XCKP2118M12 is listed as current production. Approvals include CE, CSA, and UL Listing, covering North American and European installations.

Frequently asked questions

What is the IP rating of XCKP2118M12?

IP66 and IP67. IP66 means protected against high-pressure water jets; IP67 means protected against temporary immersion up to 1 m depth.

What approvals does XCKP2118M12 carry?

CE, CSA, and UL Listed. These cover European safety compliance, Canadian standards, and North American UL listing.

Where can I buy XCKP2118M12 and how is it quoted?

The part is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
