XCKP2121P16 (Schneider Electric) — datasheet specifications below.
XCKP2121P16 Schneider Electric
MPNXCKP2121P16
XCKP2121P16 (Schneider Electric) — datasheet specifications below.
$13.97Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | COMPACT |
| Operation type | SNAP ACTION |
| Connection type | ISO M16 CONNECTOR/SCREW CLAMP TERMINAL |
| Actuator (Head type) | ONE WAY HORIZONTAL PLASTIC ROLLER |
| Contact configuration | 1NO-1NC |
| Enclosure | NEMA 1/2/4/6/6P/12/13, IP66, IP67 |
| Operating temperature | -13 TO 158 DEG F |
| Body material | PLASTIC |
| Approval | UL, CSA |
| Model | XCKP |
| Category | General Duty Limit Switches |
| Manufacturer | Square D Co. |
All specifications
| Parameter | Value |
|---|---|
| Sub-Category | General/Heavy Duty Limit Switch |
| Contact rating | 240 VAC 10 AMPERE, 250 VDC 0.27 AMPERE |
| Operating force | 159 LB-INCH |
| Manufacturer brand | Square D Co. |
| Differential travel | 3 MM |

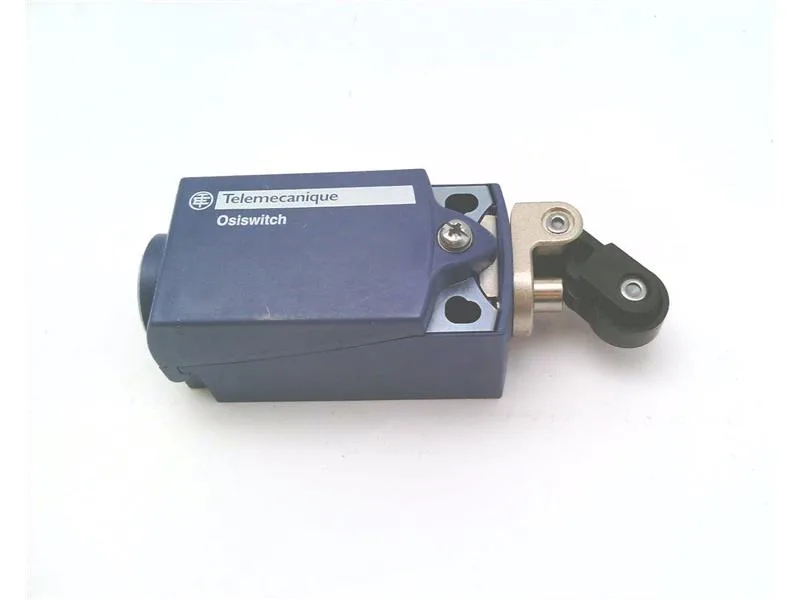

| Product description | Telemecanique XCKP2121P16 Limit Switch 240Vac 3A Plastic Xckp |
| Additional information | APPLICABLE STANDARD EN/IEC 60204-1, EN/IEC 60947-5-1 |
| Full technical description | Compact Type; 1NO-1NC Contact Configuration; ISO M16 Connector/Screw Clamp Terminal Connection Type; Snap Action Operation Type; 240 VAC 10 Ampere, 250 VDC 0.27 Ampere Contact Rating; UL, CSA Approval; NEMA 1/2/4/6/6P/12/13, IP66, IP67 Enclosure; Plastic Body Material; -13 to 158 Deg F Operating Temperature; 159 lb-Inch Operating Force; 3 mm Differential Travel; One Way Horizontal Plastic Roller Actuator/Head Type; OSISWITCH[R] Brand; Applicable Standard En/Iec 60204-1, En/Iec 60947-5-1; XCKP Model |
Product details
MPN
XCKP2121P16
