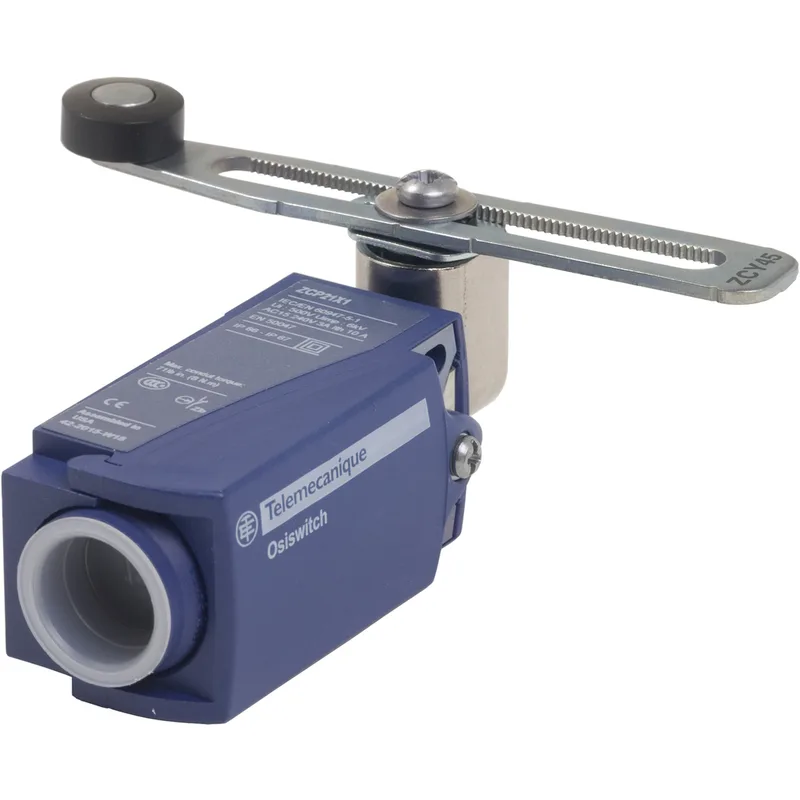

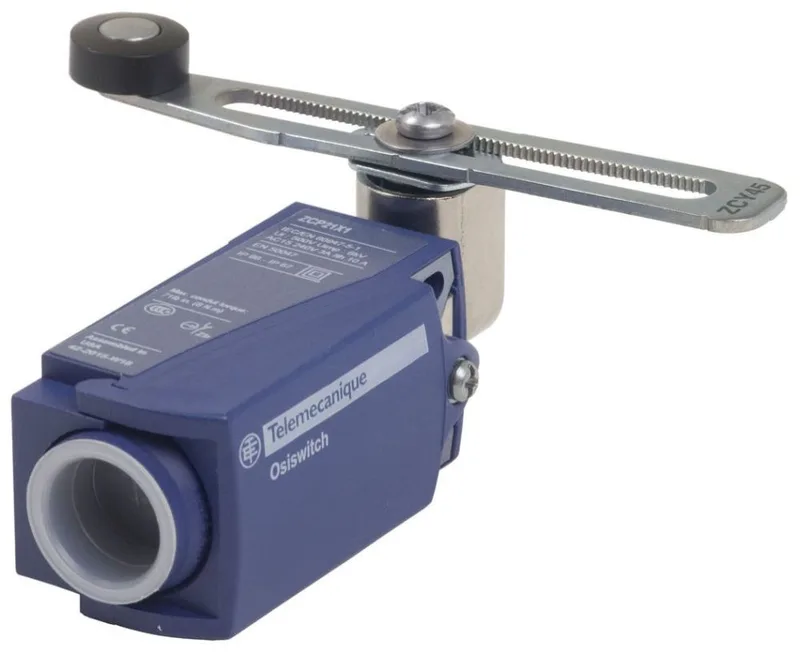

Schneider XCKP2145G11FRX1 Limit Switch
MPNXCKP2145G11FRX1
Telemecanique XCKP2145G11FRX1 Limit Switch 240Vac 10A Plastic Xckp
$64.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | LIMIT SWITCH,PLUNGER HEAD |
| Voltage rating | 3 A 240 V, AC-15 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13 EN/IEC 60947-5-1 APPENDIX A |
| Contact configuration | 1 NC + 1 NO |
| Mounting | BY THE BODY |
| Connection | MALE CONNECTOR M12, 4 PINS |
| Operating temperature | -25-70 AC |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,IEC 60204-1-EN 60204-1-IEC 60947-5-1-CSA C22.2 NO 14-EN 60947-5-1-UL 508,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529,UL-CSA-CCC,CLASS II IEC 61140-CLASS II NF C 20-030 |
| Dimensions | 30 MM,31 MM,65-65 MM |
| Actuator | SPRING RETURN PLUNGER METAL |
| Category | Miniature & Snap Action Limit Switches |
| Sub brand | XCKP |
| Application | COMPACT VARIABLE |
All specifications
| Parameter | Value |
|---|---|
| Manufacturer | Square D Co. |
| Amperage rating | 3 A |
| Operating cycles | 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special features | FIXED,PLASTIC |
| Manufacturer brand | Square D Co. |
| Product description | Telemecanique XCKP2145G11FRX1 Limit Switch 240Vac 10A Plastic Xckp |
| Closed contact resistance | 25 MOHM IEC 60255-7 CATEGORY 3 |
MPN
XCKP2145G11FRX1
