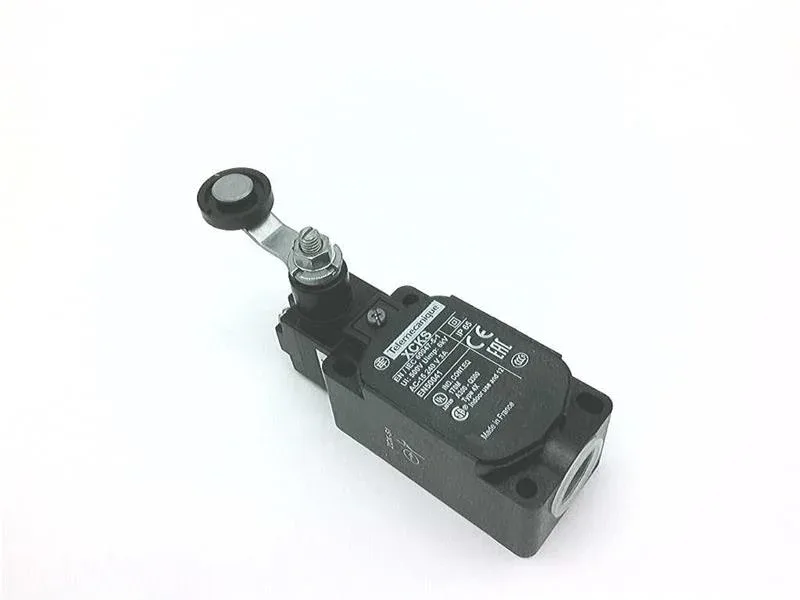

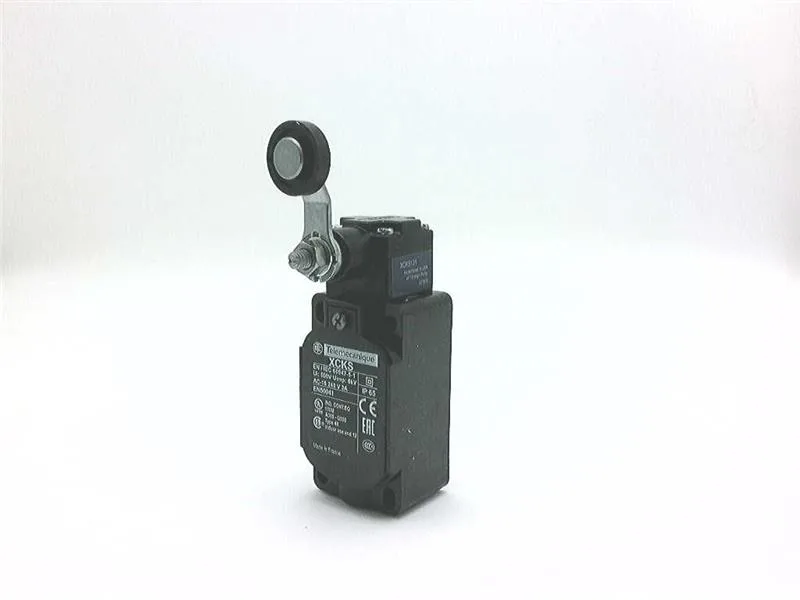

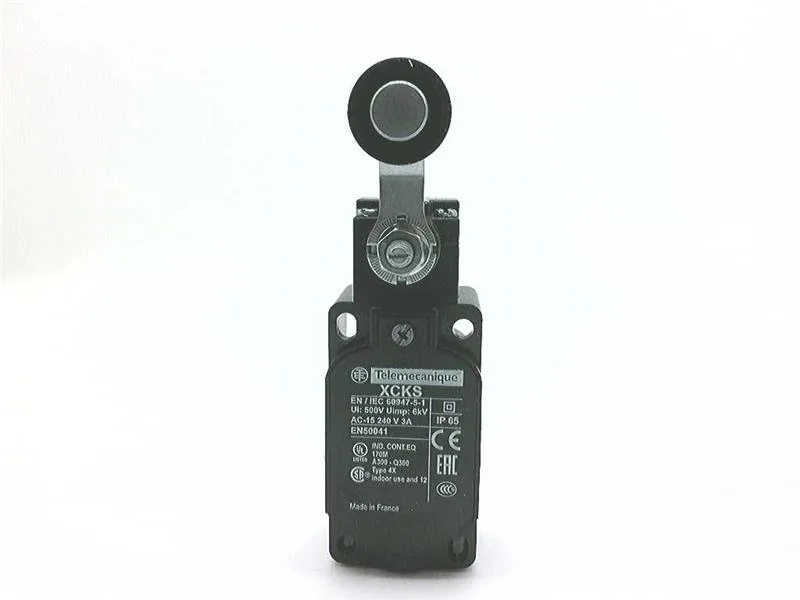

Schneider Electric XCKS131
MPNXCKS131
SQUARE D XCKS131: LIMIT SWITCH 240VAC 3A PLAST XCKS
$22.86 – $44.29Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Standard Body, Double Insulated |
| Operation type | Spring Return, Snap Action |
| Connection type | Screw Clamp Terminal |
| Actuator (Head type) | Thermoplastic Roller Lever |
| Contact configuration | 1NO-1NC |
| Enclosure | IP65 |
| Operating temperature | -13 to 158 Deg F |
| Body material | Plastic |
| Approval | UL 508, CSA C22.2, CE, CCC |
| Category | Heavy Duty Limit Switches |
| Manufacturer | Square D Co. |
| Sub-Category | General/Heavy Duty Limit Switch |
All specifications
| Parameter | Value |
|---|---|
| Contact rating | 240 VAC 3 Ampere, 250 VDC 0.27 Ampere |
| Operating force | 0.15 N (Positive Opening), 0.1 N (Tripping) |
| Manufacturer brand | Square D Co. |
| Product description | Telemecanique XCKS131 Limit Switch 240Vac 3A Plastic Xcks |
| Additional information | RoHS Compliant; Overall Dimension 1.57 Inch W x 2.36 Inch D x 5.12 Inch H; Number of Poles 2; Actuation Speed 1.5 Meter/Sec; Applicable Standard EN/IEC 60947-5-1, EN/IEC 60204-1 |
| Full technical description | Standard Body, Double Insulated Type; 1NO-1NC Contact Configuration; Screw Clamp Terminal Connection Type; Spring Return, Snap Action Operation Type; 240 VAC 3 Ampere, 250 VDC 0.27 Ampere Contact Rating; UL 508, CSA C22.2, CE, CCC Approval; IP65 Enclosure; Plastic Body Material; -13 to 158 Deg F Operating Temperature; 0.15 N (Positive Opening), 0.1 N (Tripping) Operating Force; Thermoplastic Roller Lever Actuator/Head Type; RoHS Compliant; Overall Dimension 1.57 Inch W X 2.36 Inch D X 5.12 Inch H; Number of Poles 2; Actuation Speed 1.5 Meter/Sec; Applicable Standard En/Iec 60947-5-1, En/Iec 60204-1 |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
MPN
XCKS131
