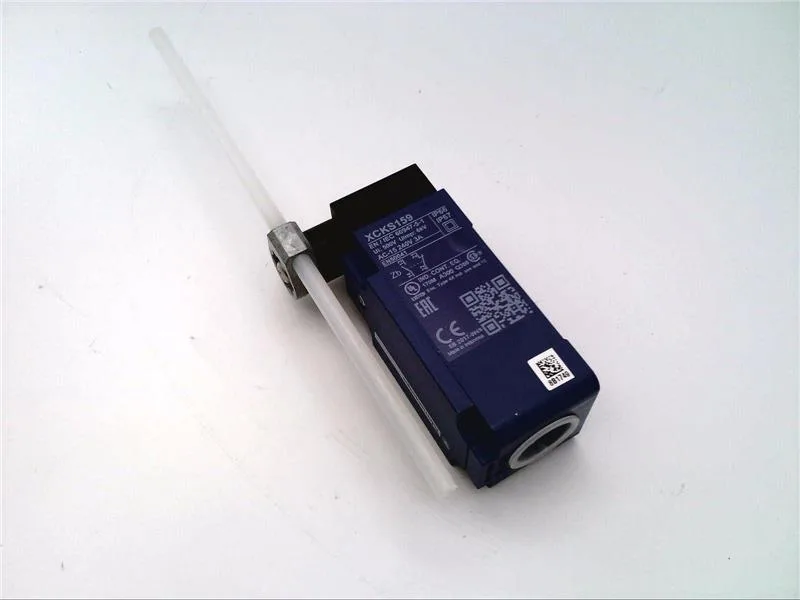

Schneider XCKS159 Limit Switch
MPNXCKS159
SQUARE D XCKS159: LIMIT SWITCH 240VAC 10AMP XCK +OPTIONS
$22.86 – $46.99Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Heavy Duty |
| Operation type | Clockwise/Counter Clockwise, Momentary, Snap Action |
| Connection type | PG13.5 Cable Gland/Screw Clamp Terminal |
| Actuator (Head type) | Polyamide Rod Lever |
| Contact configuration | SPDT, 1NO-1NC Double Break |
| Enclosure | IP65 |
| Operating temperature | -13 to 158 Deg F |
| Body material | Plastic |
| Approval | UL, CSA |
| Model | XCKS |
| Category | Heavy Duty Limit Switches |
| Pretravel | 23 Deg |
All specifications+10 ▾
| Parameter | Value |
|---|---|
| Manufacturer | Square D Co. |
| Sub-Category | General/Heavy Duty Limit Switch |
| Total travel | 80 Deg |
| Contact rating | 240 VAC 3 Ampere, 250 VDC 0.27 Ampere |
| Manufacturer brand | Square D Co. |
| Differential travel | 11 Deg |
| Product description | Telemecanique XCKS159 Limit Switch 240Vac 10Amp Xck +Options |
| Additional information | Applicable Standard EN/IEC 60204-1, EN/IEC 60947-5-1 |
| Full technical description | Heavy Duty Type; SPDT, 1NO-1NC Double Break Contact Configuration; PG13.5 Cable Gland/Screw Clamp Terminal Connection Type; Clockwise/Counter Clockwise, Momentary, Snap Action Operation Type; 240 VAC 3 Ampere, 250 VDC 0.27 Ampere Contact Rating; UL, CSA Approval; IP65 Enclosure; Plastic Body Material; -13 to 158 Deg F Operating Temperature; 11 Deg Differential Travel; Polyamide Rod Lever Actuator/Head Type; 23 Deg Pretravel; 80 Deg Total Travel; Osisense Brand; Applicable Standard En/Iec 60204-1, En/Iec 60947-5-1; XCKS Model |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
MPN
XCKS159
